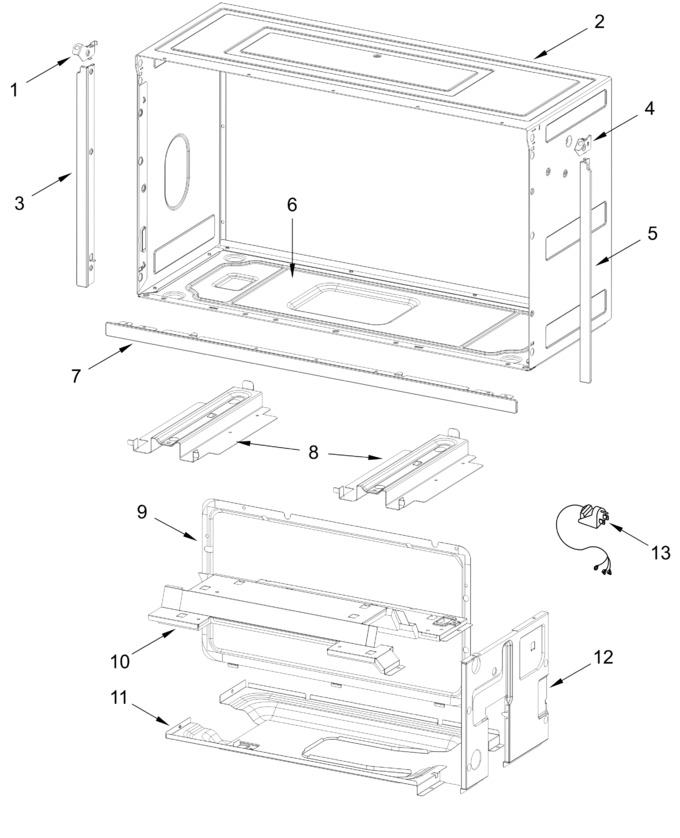

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11785032		Bracket, Vent Lock (left)   (Replaces: W11735135)		Appelez-nous	-
2	W11778498		Case, Outer (black)   (Replaces: W11727298)		Appelez-nous	-
3	W11785034		Trim, Left Side   (Replaces: W11755315)		Appelez-nous	-
4	W11785028		Bracket, Vent Lock (right)   (Replaces: W11735136)		Appelez-nous	-
5	W11785029		Trim, Right Side   (Replaces: W11755316)		Appelez-nous	-
6	W11778500		Plate, Bottom   (Replaces: W11727296)		Appelez-nous	-
7	W11785039		Trim, Bottom   (Replaces: W11739670)		Appelez-nous	-
8	W11785274		Bracket, Feet   (Replaces: W11782459)		Appelez-nous	-
9	W11779001		Insulation, Back Plate   (Replaces: W11777281)		Appelez-nous	-
10	W11779002		Insulation, Top Plate   (Replaces: W11777282)		Appelez-nous	-
11	W11778994		Insulation, Bottom Plate   (Replaces: W11777279)		Appelez-nous	-
12	W11779004		Insulation, Right Plate   (Replaces: W11777285)		Appelez-nous	-
13	W11371784		Cord, Power		Appelez-nous	-
	W11777295		Hardware, Installation		Appelez-nous	-
	W11707573		Signal Harness, Hmi To Door Hinge   (Replaces: W11581994)				$ 42.77
	W11707572		Signal Harness, Door & Odm To Acu   (Replaces: W11577230)				$ 28.50
	W11779008		Harness, Main   (Replaces: W11457595)		Appelez-nous	-
	W11353979		Harness, Cavity Led To Acu		Appelez-nous	-
	W11353962		Harness, Door Hinge To Acu				$ 45.55
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
