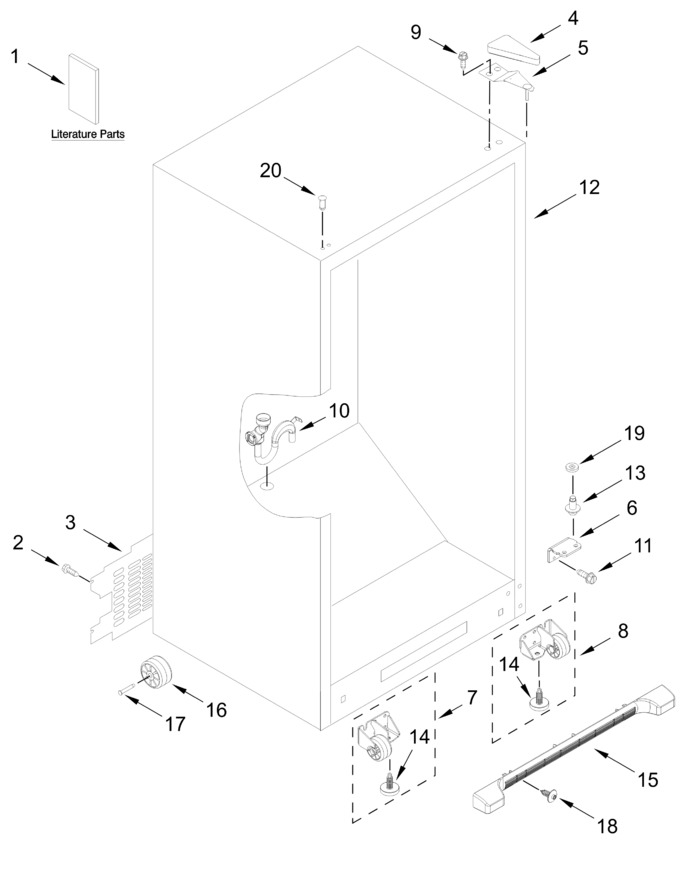

Cabinet Parts
Door Parts
Liner Parts
Optional Parts (not Included)
Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | 380675105 | Screw |
|
- | |||||
| 3 | W11311062 | Cover, Unit |
|
$ 100.38 | |||||
| 4 | WP2213360 | Cover, Hinge (white) (Replaces: 2213360) |
|
$ 17.31 | |||||
| 5 | W11728308 | Hinge Assembly, Top (Replaces: W11638835) |
|
$ 20.83 | |||||
| 6 | W11805068 | Hinge Plate, Bottom (Replaces: W11790781) |
|
$ 126.56 | |||||
| 7 | W11820444 | Roller Assembly (left Hand) (Replaces: W10515763) |
|
Immediately | $ 32.01 | ||||
| 8 | W11820445 | Roller Assembly (right Hand) (Replaces: W10515762) |
|
Immediately | $ 32.01 | ||||
| 9 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 26.18 | ||||
| 10 | W11673435 | Tube, Drain (Replaces: W11291514) |
|
Immediately | $ 43.70 | ||||
| 11 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 6.92 | ||||
| 12 | ARI8576EDE2D568F203CA1E28095884C084 | Cabinet (not A Serviceable Part) |
|
- | |||||
| 13 | W11676609 | Pin, Lower Hinge (Replaces: W10574325) |
|
$ 12.76 | |||||
| 14 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.07 | ||||
| 15 | WPW10534166 | Grille, Toe (white, Includes Clips) (Replaces: W10534166) |
|
Immediately | $ 68.95 | ||||
| 16 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 17 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 16.39 | ||||
| 18 | WPW10142283 | Screw (Replaces: W11546550) |
|
$ 8.86 | |||||
| 19 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 20 | WPW10520304 | Plug, Hole (white) (Replaces: W10520304) |
|
Immediately | $ 16.47 | ||||
| W11507042 | Owner's Manual |
|
- | ||||||
| W11737428 | Energy Guide |
|
- |
