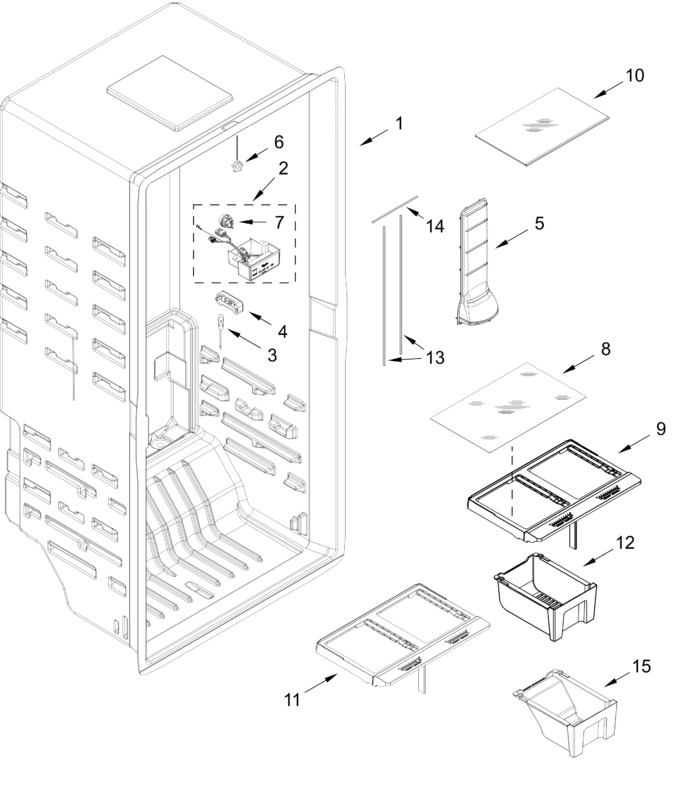

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI1BA464D72C84DA7297AB1B09D16F5BB3 | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11656918 | Control Assembly (Replaces: W11555880) |
|
Immediately | $ 262.30 | ||||
| 3 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 101.55 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 26.77 | |||||
| 5 | W10574272 | Air Tower |
|
Immediately | $ 115.07 | ||||
| 6 | W11727836 | Switch, Light (Replaces: W11514900) |
|
Immediately | $ 21.20 | ||||
| 7 | W11502762 | Module, Led (Replaces: W11254095) |
|
Immediately | $ 32.13 | ||||
| 8 | W11428833 | Glass, Crisper (Replaces: W10581574) |
|
Immediately | $ 196.80 | ||||
| 9 | W10581573 | Crisper Cover, Top |
|
$ 251.97 | |||||
| 10 | W11810078 | Shelf, Deep (Replaces: W11781321) |
|
$ 184.22 | |||||
| 11 | W10591310 | Crisper Cover, Bottom |
|
$ 84.71 | |||||
| 12 | W10654386 | Crisper Pan, Top |
|
$ 136.66 | |||||
| 13 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574368) |
|
$ 7.50 | |||||
| 14 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 7.50 | |||||
| 15 | W10654387 | Crisper Pan, Bottom |
|
$ 136.31 |
