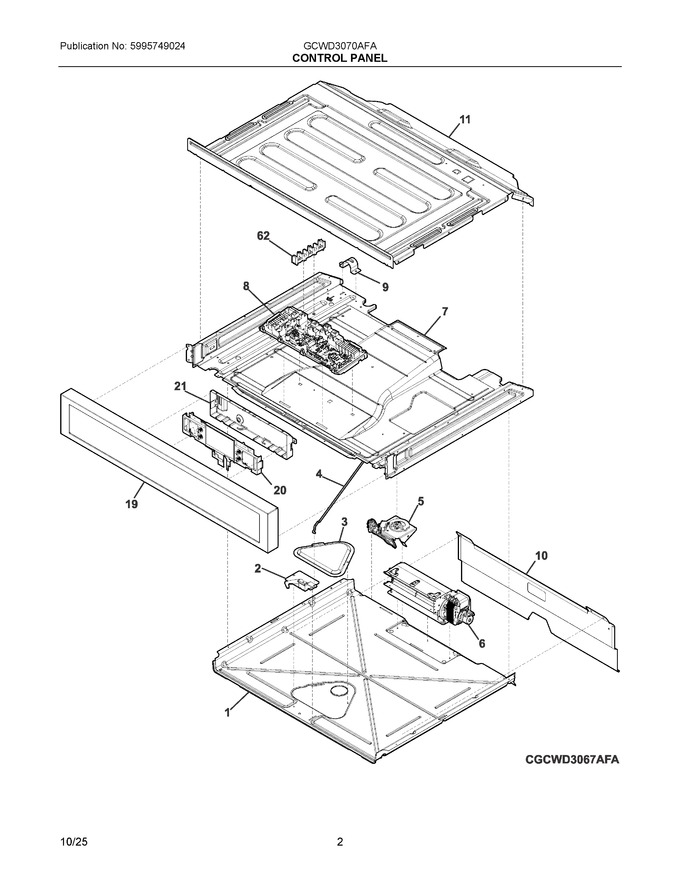

02 - Control Panel


03 - Upper Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526320		Shield, Bottom Duct		Appelez-nous	-
2	5304526367		Latch, Door				$ 15.17
3	5304526366		Cover, Vent		Appelez-nous	-
4	5304526368		Rod, Latch				$ 10.62
5	140282916018		Motor Assembly, Door Latch/lock		Appelez-nous	-
6	140175788037		Blower, Assembly			Immediately	$ 100.37
7	5304526538		Carrier Plate, Assembly, W/duct		Appelez-nous	-
8	140184940058		Main Board, Ovc				$ 169.36
9	5304530364		Bracket, Conduit Mtg.		Appelez-nous	-
11	5304532474		Shield, Top Cover			Immediately	$ 116.08
19	5304526476		Control Panel, Assembly, Steel/glass, Stainless/black, W/cntl Bracket				$ 296.37
20	140232984215		Controller, Electronic, Double Oven, Ui720d		Appelez-nous	-
21	5304523582		Housing, Controller			Immediately	$ 34.13
62	5304535277		Terminal Block			Immediately	$ 3.96
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304526426		Bracket-support Control Pux		Appelez-nous	-
NI	5304535368		Harness, Conduit Assy, Power Connect				$ 154.45
NI	5304532099		Harness, Wiring, Wall Oven, Macs				$ 22.45
NI	5304526516		Harness, Wiring, Main				$ 187.22
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIC	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
