View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Upper Oven
04 - Lower Oven
05 - Doors
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

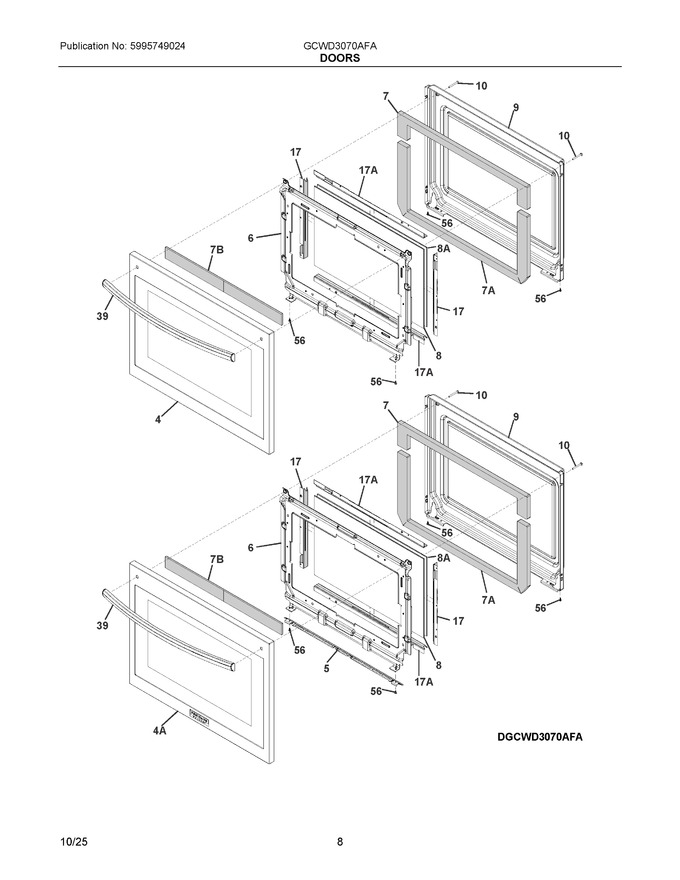

| 4 | 140209389513 | Door Assembly, Complete, Upper |
|
Immediately | $ 180.75 | ||||
| 5 | 5304530443 | Bracket, Door Protection, Lower |
|
$ 32.62 | |||||
| 6 | 5304526282 | Shield, Wool, Door |
|
$ 69.77 | |||||
| 7 | 140293846014 | Insulation, Door, Top |
|
- | |||||
| 8 | 140163079100 | Glass, Door, Inner |
|
$ 62.12 | |||||
| 9 | 5304530464 | Liner, Oven Door, Midnight Black |
|
Immediately | $ 81.70 | ||||
| 10 | 316433305 | Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg. |
|
$ 2.28 | |||||
| 17 | 5304526284 | Bracket, Glass Pack, Vertical |
|
Immediately | $ 12.13 | ||||
| 39 | 140172171054 | Handle, Door, Stainless |
|
Immediately | $ 48.57 | ||||
| 56 | 5304526234 | Screw, M4, 2 X 10, Sheet Metal, Black |
|
$ 3.03 | |||||
| 17A | 5304526285 | Bracket, Glass Pack, Horizontal |
|
$ 9.10 | |||||
| 4A | 140209389505 | Door, Assembly, Complete, Lower, W/badge |
|
$ 185.97 | |||||
| 7A | 140293846022 | Insulation, Door (2) |
|
Immediately | $ 7.15 | ||||
| 7B | 5304526530 | Insulation, Foil, Door |
|
$ 15.17 | |||||
| NI | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- |
