SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet/drum


03 - Front Panel/lint Filter

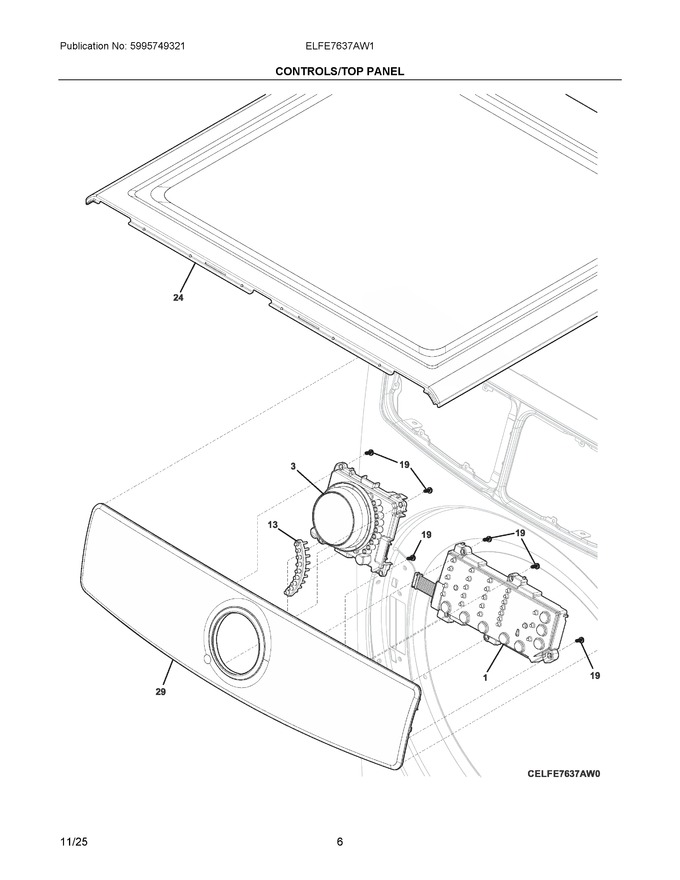

04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304529484		Board Assy, Ui Programmed, Satellite, W/housing-screw			Immediately	$ 241.46
3	140203380153		Knob Assembly, Complete, Programmed			Immediately	$ 159.33
13	5304529751		Diffuser, Light				$ 15.18
19	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
24	5304535900		Work Top, White		Appelez-nous	-
29	5304529909		Console Assembly, W/overlay				$ 177.54
NI	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
NI	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
NI	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36

    View Diagram in Separate Window       Print Part List
