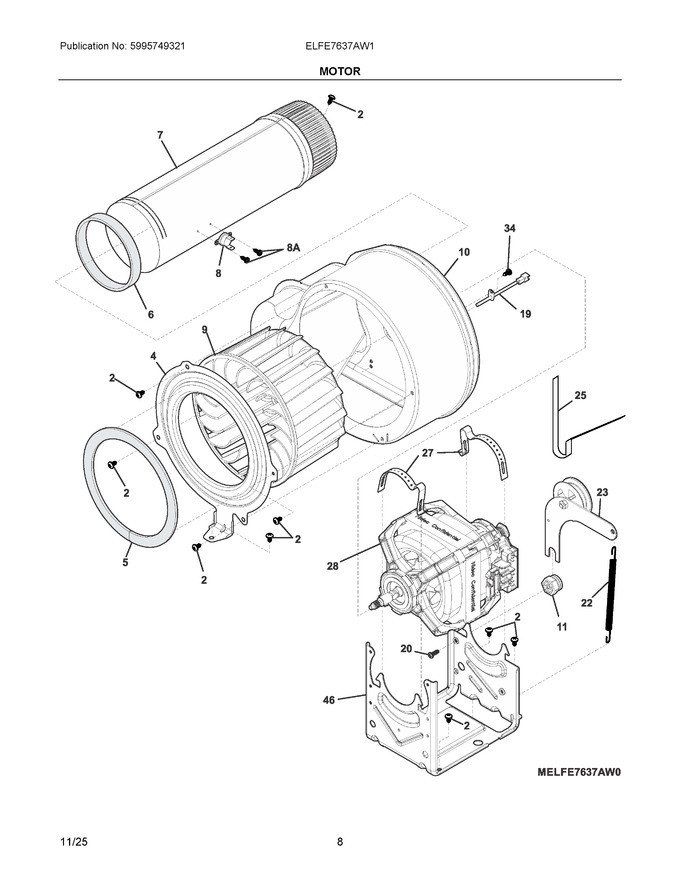

05 - Motor
06 - Burner
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 4 | 5304505074 | Spacer, Blower Front, Air Duct |
|
Immediately | $ 23.13 | ||||
| 5 | 5304505313 | Gasket, Housing, Foam |
|
$ 76.63 | |||||
| 6 | 5304505318 | Gasket, Spacer, Foam |
|
Immediately | $ 16.63 | ||||
| 7 | 5304515233 | Tube, Exhaust, Rear |
|
$ 55.67 | |||||
| 8 | 134711401 | Limiter, Thermal Exhaust, Flush Mount |
|
Immediately | $ 35.48 | ||||
| 9 | 5304513609 | Blower Wheel, Assembly |
|
Immediately | $ 60.48 | ||||
| 10 | 5304529655 | Blower Assembly, Airguide |
|
Immediately | $ 119.29 | ||||
| 11 | 5304525724 | Spacer, Idler |
|
Immediately | $ 35.42 | ||||
| 19 | 5304513591 | Thermistor, Exhaust |
|
Immediately | $ 44.22 | ||||
| 20 | 131205100 | Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 22 | 131601000 | Spring, Idler Arm |
|
Immediately | $ 82.20 | ||||
| 23 | 134793511 | Idler Arm Assy, W/pulley |
|
Immediately | $ 44.53 | ||||
| 25 | 134719300 | Belt, "h", Poly V, 5 Rib |
|
Immediately | $ 68.68 | ||||
| 27 | 134242400 | Clamp, Motor Mtg. |
|
Immediately | $ 35.76 | ||||
| 28 | 5304529782 | Motor, Main Drive, 115v 60hz |
|
Immediately | $ 287.62 | ||||
| 46 | 5304525693 | Bracket, Motor |
|
$ 45.55 | |||||
| 52 | 131202300 | Screw, 10-16ab X 0.625 |
|
Immediately | $ 13.46 | ||||
| 8A | 134935200 | Screw, #6 Pan Head, #8-32 X .25, Quadrex |
|
$ 13.46 |
