SELECT A DIAGRAM

01 - Cover Sheet

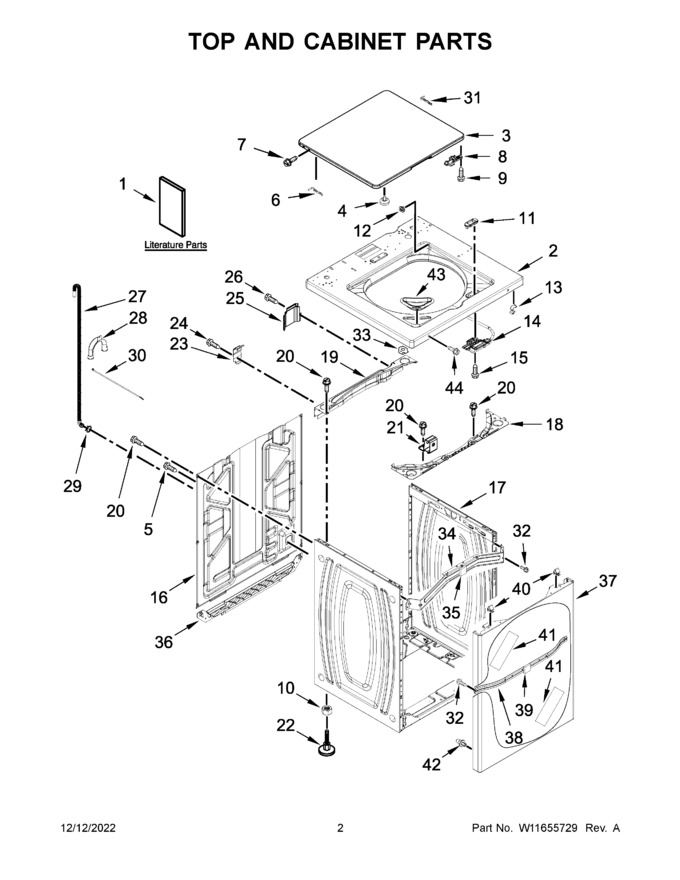

02 - Top And Cabinet Parts


03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11600470		Installation Instructions		Appelez-nous	-
2	W10461170		Top (white)				$ 251.44
3	WPW10338625		Assembly, Lid (white)   (Replaces: W10251302)			Immediately	$ 332.64
4	W11252488		Bumper, Lid   (Replaces: W11241723)				$ 5.90
5	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.07
6	WP91770		Hinge, Lid (left)   (Replaces: 91770)				$ 24.71
7	WPW10119828		Screw   (Replaces: W10119872)			Immediately	$ 6.47
8	WPW10240513		Strike, Lid Lock (white)   (Replaces: W10240513)			Immediately	$ 35.61
9	WPW10273971		Screw   (Replaces: W10273971)			Immediately	$ 6.47
10	WP3359452		Nut, Hex   (Replaces: 3359452)			Immediately	$ 6.47
11	WPW10392041		Bezel, Lid Lock (white)   (Replaces: W10392041)			Immediately	$ 6.86
12	WP21258		Bearing, Lid Hinge   (Replaces: 21258)			Immediately	$ 6.87
13	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
14	WPW10482836		Latch, Lid Lock Assembly   (Replaces: W10482836)			Immediately	$ 105.06
15	W11679611		Screw   (Replaces: W10588613)				$ 6.17
16	W11486091		Panel, Rear   (Replaces: W11417173)			Immediately	$ 280.90
17	W10845574		Cabinet (white)				$ 606.31
18	W11695476		Brace, Cabinet Top - Front (white)   (Replaces: W10724131)				$ 68.39
19	W11712680		Brace, Cabinet Top - Rear   (Replaces: W11089573)			Immediately	$ 89.04
20	W11568617		Screw   (Replaces: W10567155)				$ 12.62
21	W10461182		Lock, Top				$ 11.46
22	W10862938		Foot, Leveling   (Replaces: W10245373)			Immediately	$ 11.33
23	W10461176		Hinge, Top				$ 14.95
24	WP489128		Screw   (Replaces: W10142728)				$ 9.79
25	W10461180		Cover, Harness		Appelez-nous	-
26	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 6.98
27	W11244231		Hose, Outer Drain Assembly   (Replaces: W11203364)			Immediately	$ 28.86
28	WPW10280024		U-bend, Drain Hose   (Replaces: W10280024)				$ 71.58
29	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
30	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 7.11
31	WP54583		Hinge, Lid (right)   (Replaces: 54583)				$ 26.60
32	W11685943		Screw   (Replaces: W10660565)				$ 12.83
33	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
34	W11129581		Bracket, Front Top				$ 37.89
35	W10161707		Top, Foam Seal		Appelez-nous	-
36	W11610868		Bracket				$ 49.76
37	W11704945		Panel   (Replaces: W11552072)				$ 305.47
38	W10866521		Bracket, Front Panel				$ 38.32
39	WP8283273		Damper, Brace   (Replaces: 8283273)				$ 24.35
40	W11376161		Lock, Top Front   (Replaces: W10862638)			Immediately	$ 6.61
41	W11096159		Damper, Sound				$ 24.62
42	W11590580		Rivet   (Replaces: W10866523)				$ 8.06
43	WPW10192089		Dispenser, Bleach   (Replaces: W10192089)			Immediately	$ 7.16
44	W10879744		Screw		Appelez-nous	-
1A	W11600465		Use And Care Guide		Appelez-nous	-
1B	W11602327		Tech Sheet		Appelez-nous	-
1C	W11600466		Quick Start Guide		Appelez-nous	-
1D	W11626976		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
