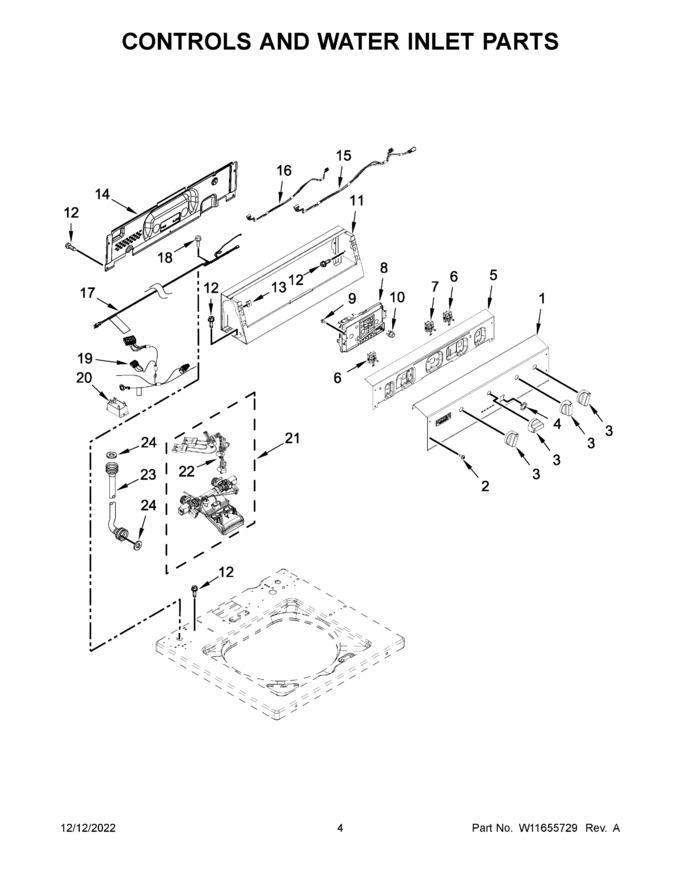

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11658046		Overlay   (Replaces: W11547599)				$ 294.50
2	WPW10131119		Screw M4x13   (Replaces: W10131119)				$ 6.26
3	W11657966		Knob   (Replaces: W11567085)				$ 82.46
4	W10510149		Bezel - Pts			Immediately	$ 24.54
5	W11547593		Bracket				$ 100.77
6	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 163.26
7	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 105.68
8	W11831579		Cntrl-elec   (Replaces: W11617028)			Immediately	$ 227.49
9	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.04
10	W11658045		Pushbutton   (Replaces: W11549786)				$ 65.07
11	W11124005		Console				$ 204.36
12	W11685943		Screw   (Replaces: W10660565)				$ 12.83
13	WPW10131123		Nut, "u   (Replaces: W10131123)				$ 6.94
14	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 308.94
15	W11108620		Harness, Jumper				$ 30.19
16	W10694676		Harns-wire				$ 35.51
17	W11676810		Cord, Power   (Replaces: W10916256)				$ 58.58
18	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 6.98
19	W11736785		Harness, Upper   (Replaces: W10843661)			Immediately	$ 132.20
20	W11384790		Relay   (Replaces: W11032871)			Immediately	$ 67.27
21	W11205048		Inlet Assembly, Water   (Replaces: W10843663)			Immediately	$ 138.32
22	W10843398		Harness, Valve				$ 127.12
23	W11085908		Hose, Water Inlet (cold)   (Replaces: W10852720)			Immediately	$ 44.33
24	WP16123		Accessory Parts, Washer, Hose   (Replaces: W10242307)				$ 6.93
23A	W11085908		Hose, Water Inlet (hot)   (Replaces: W10852721)			Immediately	$ 44.33
