View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Air Flow Parts
Cabinet And Installation Parts

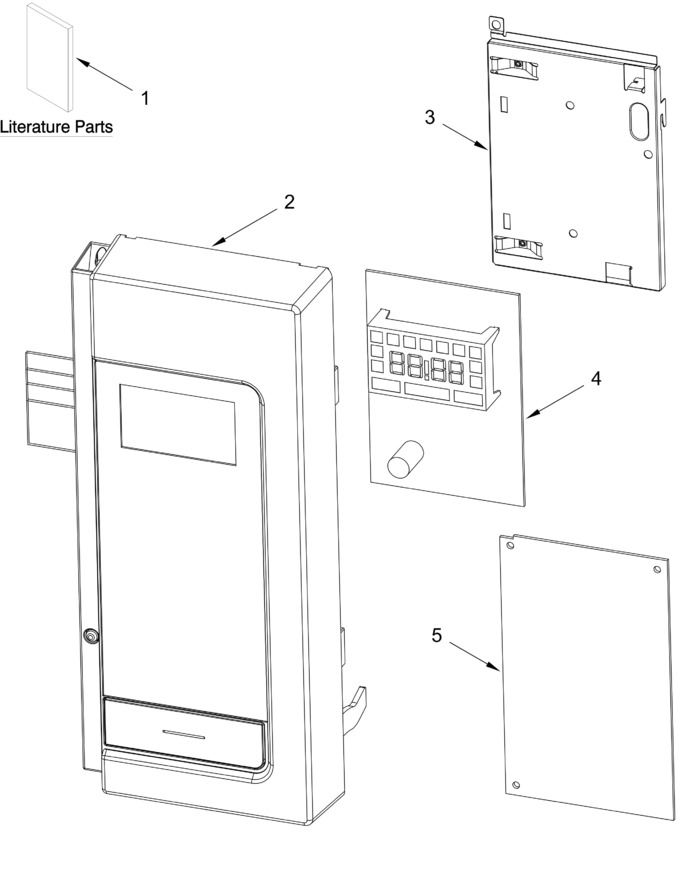

Control Panel Parts
Door Parts
Interior And Ventilation Parts
Turntable Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11439342 | Panel, Control (white) |
|
$ 169.64 | |||||
| 3 | W11336127 | Backer, Control |
|
$ 62.00 | |||||
| 4 | W11801258 | User Interface (Replaces: W11800308) |
|
- | |||||
| 5 | W11443138 | Appliance Control Unit (Replaces: W11381045) |
|
Immediately | $ 117.86 | ||||
| W11332391 | Use And Care Guide |
|
- | ||||||
| W11417679 | Installation Instructions |
|
- | ||||||
| W11332389 | Tech Sheet |
|
- |
