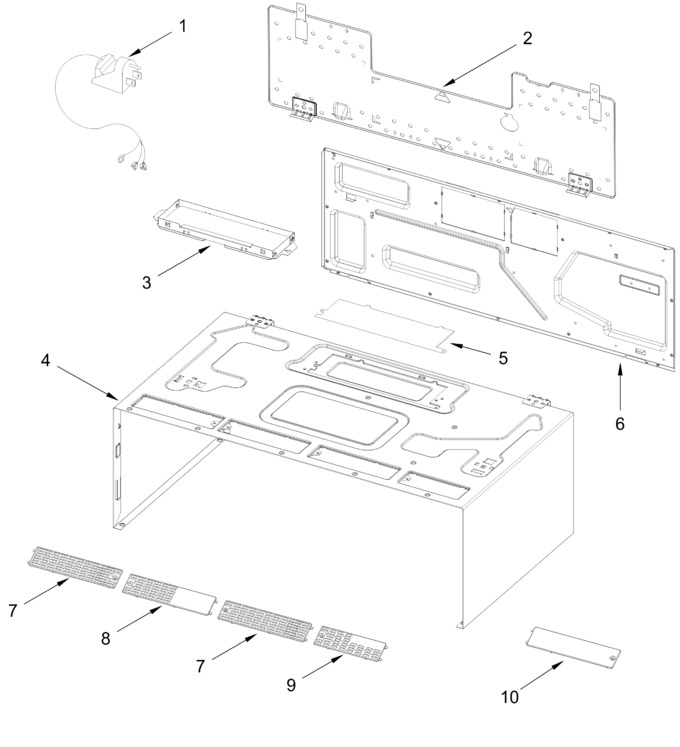

Air Flow Parts
Cabinet And Installation Parts
Control Panel Parts
Door Parts
Interior And Ventilation Parts
Turntable Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11187360 | Cord, Power |
|
Immediately | $ 101.01 | ||||
| 2 | W11368557 | Plate, Mounting (Replaces: W11086258) |
|
Immediately | $ 40.22 | ||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 65.74 | ||||
| 4 | W11475334 | Case, Outer (white) |
|
- | |||||
| 5 | W11420159 | Cover, Hood Vent (white) |
|
$ 38.69 | |||||
| 6 | W11360416 | Backplate, Oven |
|
$ 66.41 | |||||
| 7 | W11086309 | Grille, Long Vent (stainless) |
|
$ 98.27 | |||||
| 8 | W11095781 | Grille, Light Access Vent (stainless) |
|
$ 98.27 | |||||
| 9 | W11086310 | Grille, Short Vent (stainless) |
|
$ 98.26 | |||||
| 10 | W11397086 | Cover, Long Vent (stainless) (Replaces: W11095767) |
|
Immediately | $ 62.15 | ||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11357510 | Harness, Hmi To Acu Ntc |
|
- | ||||||
| W11320706 | Harness, Acu To Hmi |
|
- | ||||||
| W11320708 | Harness, Door Switch To Hmi |
|
- | ||||||
| W11320709 | Harness, Main |
|
- | ||||||
| W11306551 | Holder, Lamp |
|
$ 29.18 | ||||||
| W11187937 | Harness, Ground Wire |
|
$ 22.15 | ||||||
| W11355486 | Harness, Door Signal Switch |
|
- | ||||||
| W10821385 | Hardware, Installation |
|
Immediately | $ 88.90 |
