View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover

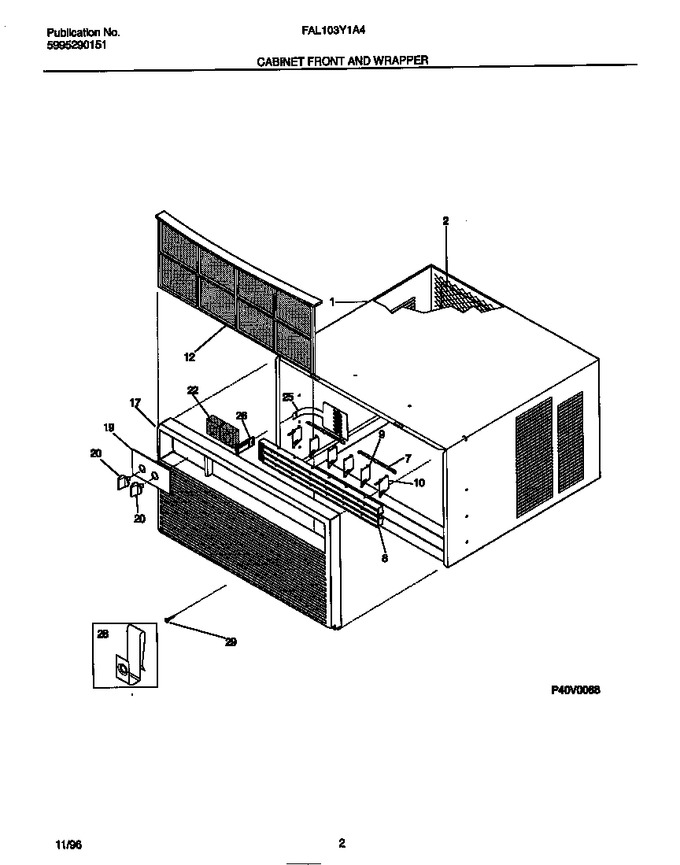

02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309609207 | Cabinet |
|
- | |||||
| 2 | 5303303597 | Grille, Rear |
|
- | |||||
| 7 | 309304101 | Link,louver ,(2) |
|
- | |||||
| 8 | 309607701 | Louver |
|
- | |||||
| 9 | 309607801 | Louver-vertical, (4) |
|
- | |||||
| 10 | 309607802 | Louver-vertical W/handle, (2) |
|
- | |||||
| 12 | 309609501 | Filter |
|
- | |||||
| 17 | 309609706 | Front, Cabinet, Complete |
|
- | |||||
| 19 | 309614611 | Dial Plate |
|
- | |||||
| 20 | 309307001 | Knob-control, (2) |
|
- | |||||
| 22 | 5303001775 | Spacer, Plate |
|
- | |||||
| 25 | 5303316592 | Vent Door |
|
- | |||||
| 26 | 309100504 | Handle-vent Door |
|
- | |||||
| 28 | 309100401 | Clip,cabinet Front |
|
- | |||||
| 29 | 5303303691 | Screw, 8-18ab X 0.38 |
|
- |
