01 - Cover
02 - Cabinet Front And Wrapper

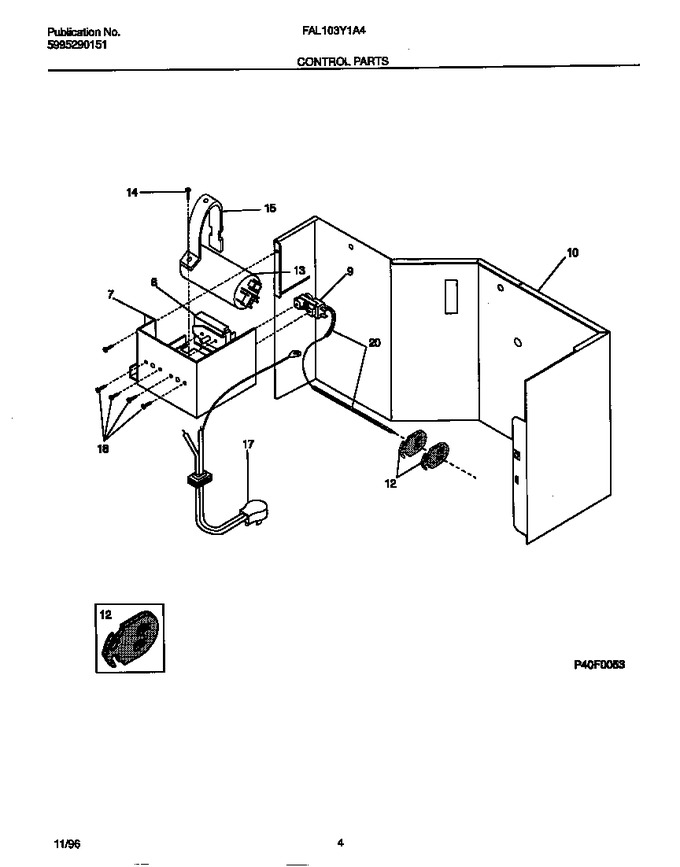

03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309605601 | Control Box |
|
- | |||||
| 8 | 5303316598 | Switch-selector |
|
- | |||||
| 9 | 5303316597 | Control-temperature |
|
- | |||||
| 10 | 5303316617 | Bulkhead |
|
- | |||||
| 12 | 5303002169 | Clip-control Bulb |
|
- | |||||
| 13 | 5303320002 | Capacitor, 370 V, 7 + 40 Mfd |
|
- | |||||
| 14 | 5303015427 | Screw, Truss Head, 8-18ab X 0.47, Square Drive |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 17 | 5303316618 | Cord-electric Power, 115 |
|
- | |||||
| 18 | 5303007754 | Screw, .138-32 X .188 |
|
- | |||||
| 20 | 5303002600 | Sleeve, Control |
|
- | |||||
| *78840 | 5303316603 | Wiring Harness |
|
- |
