SELECT A DIAGRAM

01 - Cover

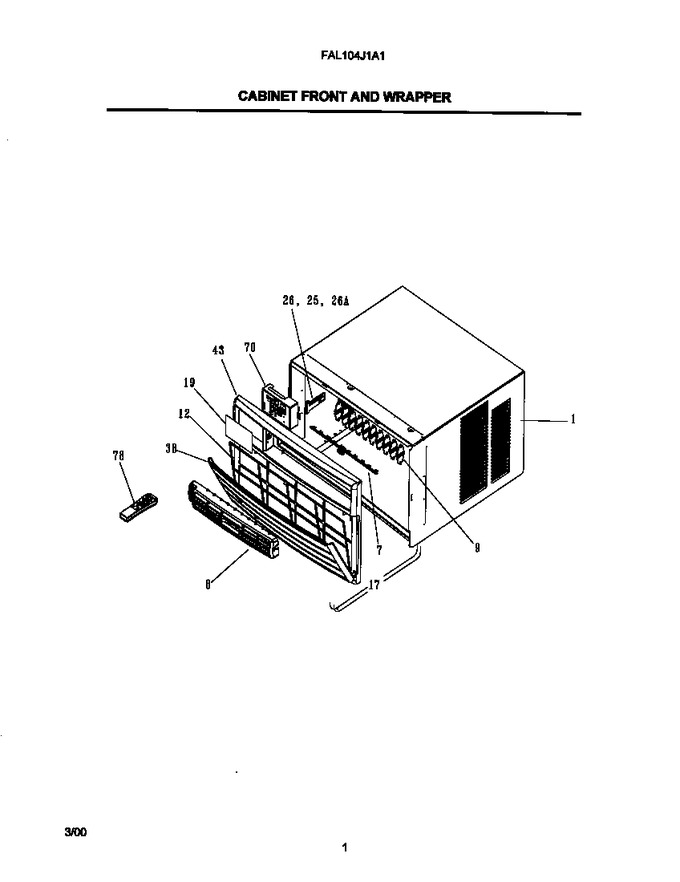

02 - Cabinet Front And Wrapper


03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309609212		Sleeve/seal/spacer Assy. 22sa		Appelez-nous	-
2	5304414101		Grll&rr Rail Asm-22nsl (1403)		Appelez-nous	-
7	309638601		Link		Appelez-nous	-
8	309639701		+horiz.louver		Appelez-nous	-
9	309342001		Vert. Louv.		Appelez-nous	-
12	309343502		Filter-no Frame 22``t/c				$ 29.82
17	309640302		Frnt/pnl Assy Compl.brnd.22tc				$ 137.97
19	309340903		Overlay 22`` Fac N/gallery		Appelez-nous	-
21	5314949603		Seal-chassis,bottom		Appelez-nous	-
25	309328602		Door-vent,fresh Air		Appelez-nous	-
26	309639401		Handle-vnt Brnd 1403 Cmp/22tc		Appelez-nous	-
38	309639601		Panel-front				$ 86.21
43	309639501		Frame-frnt				$ 108.62
70	309342301		+encloure-22`` Brands				$ 18.38
78	309350502		Pkg-jy-tai Trans W/batteries				$ 108.26
78	309342604		Remote-cntrl Pkg Ge;fac N/gry		Appelez-nous	-
*94520	309330201		Detent-vent				$ 26.30
*94521	309640402		Horiz Louver Assy.		Appelez-nous	-
