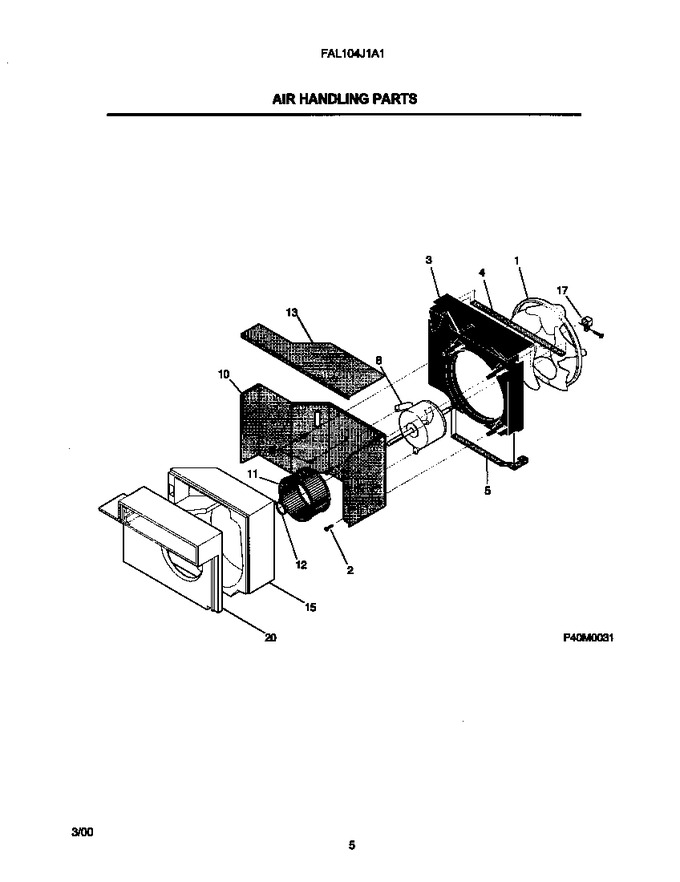

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303320769		Fan Blade,with Clamp		Appelez-nous	-
2	3202975		Screw`10-16 X 0.72 ,square Drive		Appelez-nous	-
3	3202950		Housing-fan		Appelez-nous	-
4	3202953		Seal-fan Housing,top		Appelez-nous	-
5	3202951		Seal-fan Housing,bottom		Appelez-nous	-
7	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
8	309630602		Motor-fan,115 V				$ 462.53
10	5303316617		Bulkhead		Appelez-nous	-
11	309608902		Blower Wheel-22 Cavity3&4				$ 62.42
12	309112101		+clamp-blower Wheel		Appelez-nous	-
13	309605902		Cover,top		Appelez-nous	-
14	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
14	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
15	309605702		Housing-blower,evap Scroll		Appelez-nous	-
20	309605802		Plate-blower Housing,scroll Plate		Appelez-nous	-
