SELECT A DIAGRAM

01 - Cover Sheet

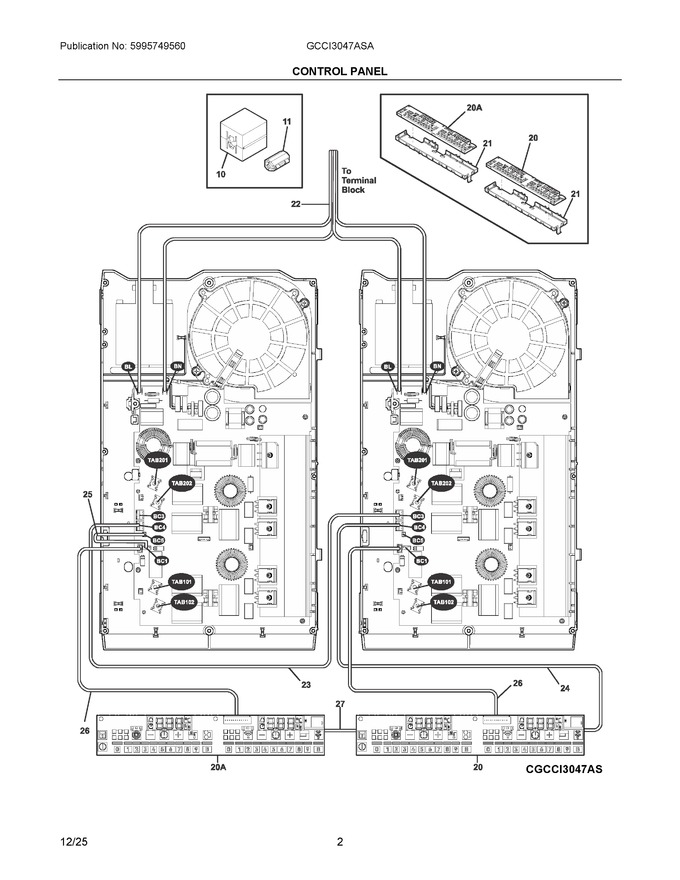

02 - Control Panel


03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140115392619		Generator Board, Both Sides			Immediately	$ 404.38
10	5304506076		Filter, Ferrite Choke			Immediately	$ 42.01
11	5304514339		Filter, Ferrite Choke			Immediately	$ 39.95
20	5304527619		Pc Board, User Interface, Rh Side			Immediately	$ 220.30
21	5304527617		Carrier, User Interface				$ 61.43
22	5304527613		Harness, Wiring, Main				$ 130.44
23	318578332		Harness, Wiring, Communication, Generators			Immediately	$ 54.35
24	5304527622		Harness, Wiring, Communication, Ui To Generator			Immediately	$ 38.83
25	387484500		Jumper Assembly, Bc1-bc5				$ 9.61
26	5304527620		Harness, Wiring, Generator, To Ui Board				$ 27.30
27	5304527621		Harness, Wiring, Ui Boards, Connecting				$ 32.65
20A	5304527618		Pc Board, User Interface, Lh Side			Immediately	$ 220.35
NI	5304527611		Filter Assy, Grounding, W/toroid		Appelez-nous	-
NI	5304527623		Harness Assembly, Emc Filter, W/capacitors				$ 88.60
NI	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36

    View Diagram in Separate Window       Print Part List
