SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel

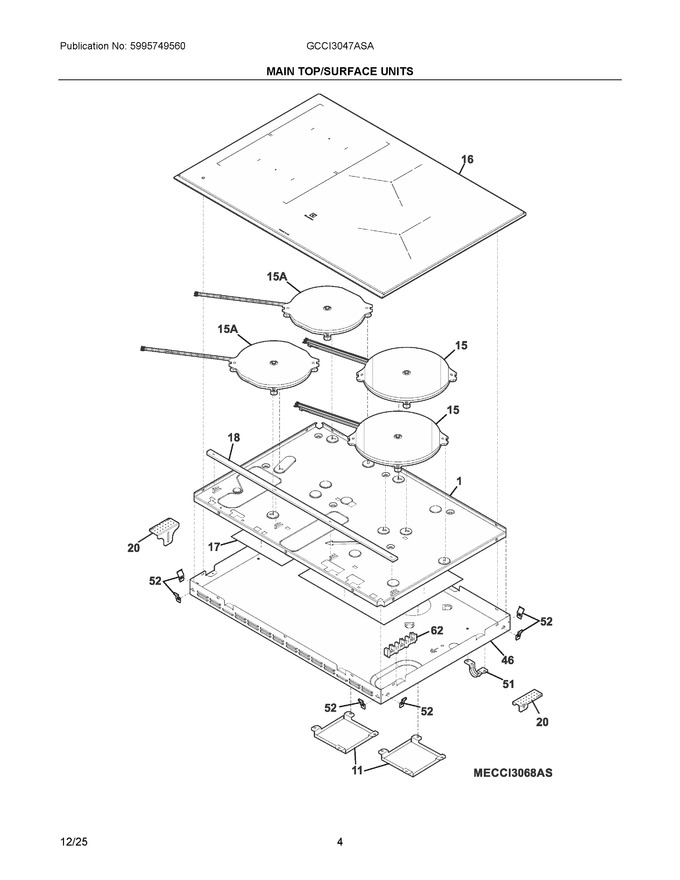

03 - Main Top/surface Units
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304527615 | Carrier, Induction Coil |
|
- | |||||
| 11 | 5304527609 | Cover, Fan |
|
- | |||||
| 15 | 357249669 | Element, Induction Coil, 210mm |
|
$ 180.50 | |||||
| 16 | 140189457033 | Maintop, 30 |
|
- | |||||
| 17 | 5304527614 | Insulation, Mica Sheet |
|
- | |||||
| 18 | 5304527616 | Insulation |
|
$ 24.10 | |||||
| 20 | 5304538915 | Bracket, Installation, Granite Counter (Replaces: 5304527624) |
|
Immediately | $ 5.41 | ||||
| 46 | 140265068019 | Outer Box, 30 |
|
- | |||||
| 62 | 5304535277 | Terminal Block |
|
Immediately | $ 3.96 | ||||
| 15A | 357226372 | Element, Induction Coil, 180 Mm |
|
$ 164.16 | |||||
| NI | 8587320115205 | Screw, 8-18x5 |
|
- | |||||
| NI | 140173652037 | Box Cable |
|
- | |||||
| NI | 140210818021 | Cover, Box Cable |
|
- | |||||
| NI | 305309704 | Screw, St, 4.2 : 12, (9) |
|
- | |||||
| NI | 131243700 | Screw, B4, 2 X 9, 5 (Replaces: 330447900) |
|
$ 3.36 | |||||
| NIA | 305309608 | Screw, M4 |
|
- | |||||
| NIB | 305376201 | Nut, Terminal Block, (2) |
|
- | |||||
| NIC | 5303323140 | Screw, Ground (Replaces: 305452800) |
|
- |
