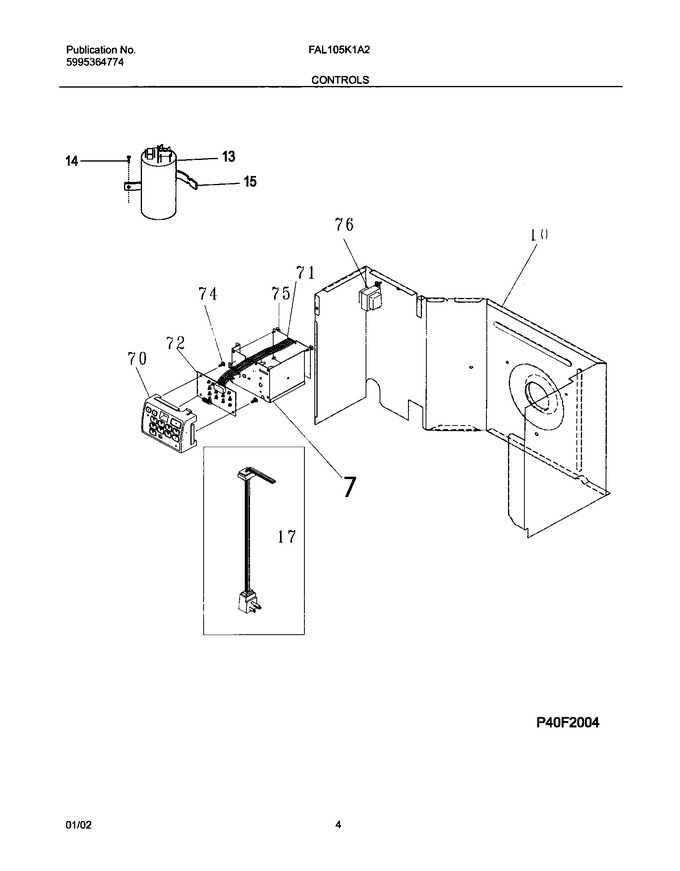

05 - Controls


07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309605605		Box-control		Appelez-nous	-
10	5303316617		Bulkhead		Appelez-nous	-
14	5303285199		Screw,phillips ,8-18 X 0.38 ,sq.recess ,truss Head		Appelez-nous	-
15	309111901		Strap,capacitor Mtg.		Appelez-nous	-
17	309343104		Cord-service		Appelez-nous	-
70	309342301		Enclosure,elec Control Mt				$ 18.38
71	309350401		Pc Board,power,sagem		Appelez-nous	-
72	309350402		Pc Board,input		Appelez-nous	-
74	3201861		Screw-bracket   (Replaces: 5303301590)				$ 0.76
75	5304413781		Support-pc Board		Appelez-nous	-
76	309111601		Transformer,120/12 Volt		Appelez-nous	-
F13	5303291523		Capacitor,370 V ,10+40 Mfd				$ 186.32
NI	5304415017		Protector		Appelez-nous	-
NI	08017123		Holder-thermistor,assy With Seal		Appelez-nous	-
NI	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
NI	309111201		Grommet,wire Protector		Appelez-nous	-
NI	5303303691		Screw,truss Head ,8-18ab X 0.375 ,cabinet/base,w/nibs		Appelez-nous	-
