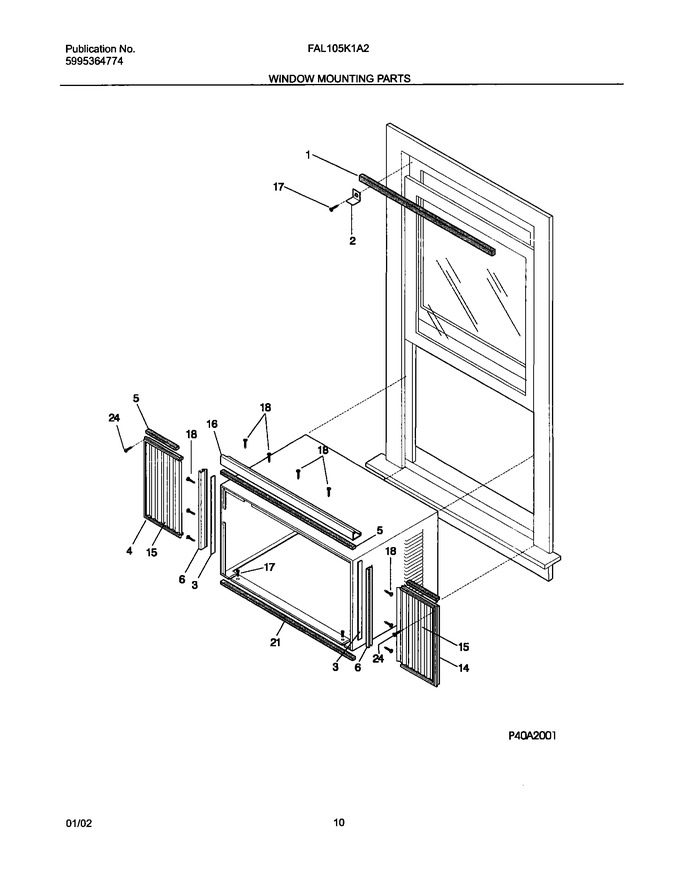

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304407729		Seal-window Frame,stuffer		Appelez-nous	-
2	5303211056		Bracket		Appelez-nous	-
3	5303276728		Seal,retainer		Appelez-nous	-
4	5304415073		Frame,lh		Appelez-nous	-
5	5303207200		Seal,rail ,top		Appelez-nous	-
6	5304414107		Retainer,accordian		Appelez-nous	-
14	5304415074		Frame,rh		Appelez-nous	-
15	5304415072		Closure,accordian Type ,window Mount		Appelez-nous	-
16	5304414102		Rail-top		Appelez-nous	-
17	3002803		Screw,wood, Type 17 ,10-12 X 0.750		Appelez-nous	-
18	5304416289		Screw,ph Truss Head ,8-18ab X 0.47		Appelez-nous	-
21	5314949603		Seal-chassis,bottom		Appelez-nous	-
24	5308002974		Screw,wood, Type 17 ,8-15 X 0.500		Appelez-nous	-
NI	5303301572		Nut,speed ,no.8		Appelez-nous	-
NI	309313205		Kit-mounting Support		Appelez-nous	-
NI	309313304		Kit-window Mounting		Appelez-nous	-
NI	5304426447		Kit-hardware,mounting		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
