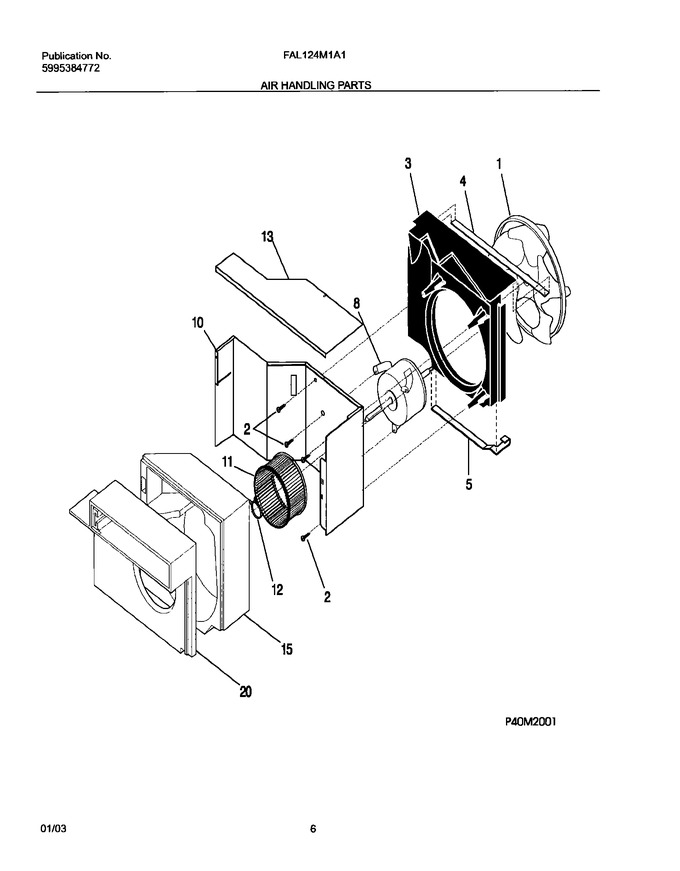

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3202975		Screw,10-16ab X 0.72 ,square Drive		Appelez-nous	-
3	3202950		Housing,fan Shroud		Appelez-nous	-
4	3202953		Seal		Appelez-nous	-
5	3202951		Seal,bottom		Appelez-nous	-
10	5303316617		Bulkhead		Appelez-nous	-
12	5303012110		Clamp,blower Wheel Mt				$ 8.14
13	309605902		Cover,blower Wheel ,top		Appelez-nous	-
15	309605702		Housing,blower Scroll		Appelez-nous	-
20	309605802		Plate,scroll Cover		Appelez-nous	-
F1	5303320769		Fan Blade,with Clamp		Appelez-nous	-
F11	309608902		Blower-wheel,cavity 3&4				$ 62.42
F8	309630602		Motor-fan,115 V				$ 462.53
NI	5303015427		Screw,truss Head ,8-18ab X 0.47 ,with Nibs		Appelez-nous	-
