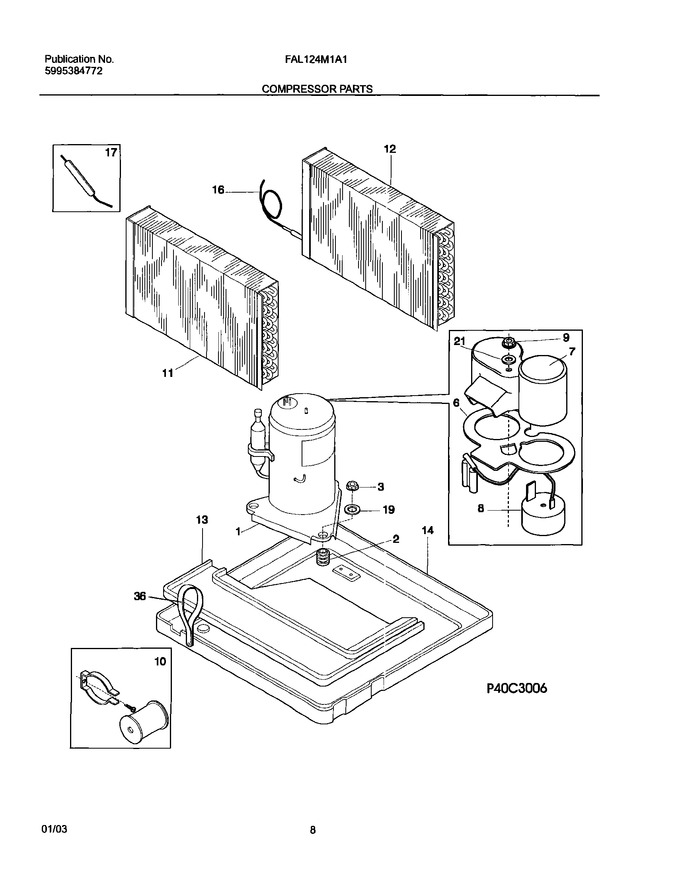

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 5303291330 | Gasket,terminal Cover |
|
- | |||||
| 7 | 5304416126 | Cover,elec Terminal ,compressor |
|
- | |||||
| 9 | 5303294292 | Nut-terminal Cover |
|
- | |||||
| 13 | 309606001 | Tray,evaporator Drip |
|
- | |||||
| 14 | 5304414417 | Base,compressor Mt. ,with Studs |
|
- | |||||
| 19 | 309112501 | Washer,metallic |
|
- | |||||
| 21 | 5303293809 | Washer,terminal Cover |
|
- | |||||
| 36 | 5303303558 | Strap-chassis Pull |
|
- | |||||
| F1 | 309603107 | Compressor |
|
$ 382.67 | |||||
| F10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| F11 | 309606105 | Evaporator |
|
- | |||||
| F12 | 5304407866 | Condenser |
|
- | |||||
| F16 | 5308017120 | Capillary Tube,45 Inch Long ,cut To Length |
|
- | |||||
| F17 | 5300265301 | Drier-filter,service Kit |
|
$ 284.30 | |||||
| F8 | 5304419795 | Overload Protector,mra 12053-386 |
|
- |
