02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Unit Parts
06 - Compressor Parts
SELECT A DIAGRAM
New Model Search:

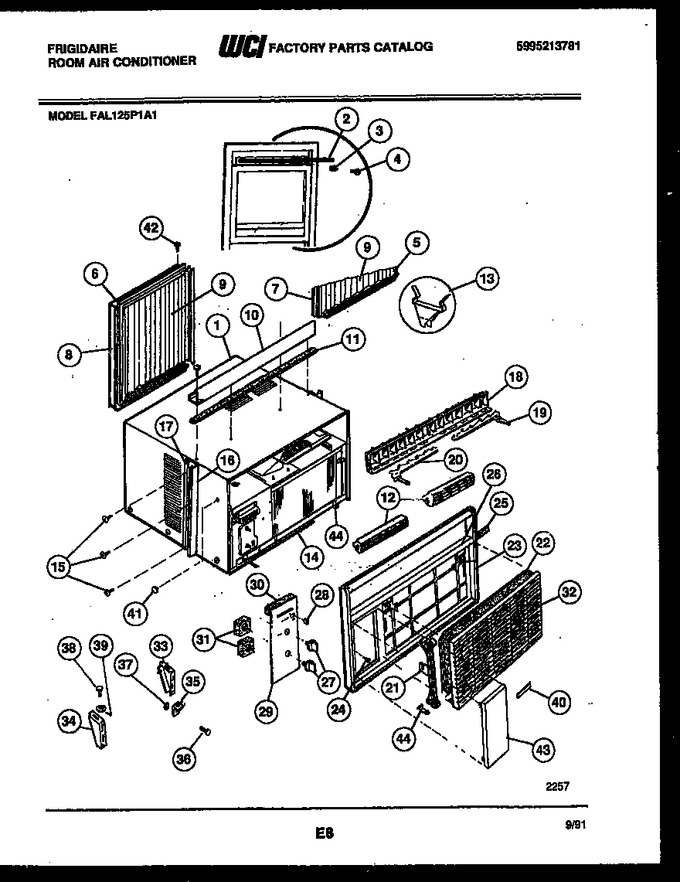

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303271901 | Wrapper |
|
- | |||||
| 2 | 3002603 | Gasket |
|
- | |||||
| 3 | 5303211056 | Bracket |
|
- | |||||
| 4 | 3007756 | Screw |
|
- | |||||
| 5 | 5303276706 | Frame W/ Accordian Rh |
|
- | |||||
| 6 | 5303276707 | Frame W/ Accordian Lh |
|
- | |||||
| 7 | 3203060 | Frame-rh |
|
- | |||||
| 8 | 3202964 | Frame-lh |
|
- | |||||
| 9 | 5303211382 | Accordian |
|
- | |||||
| 10 | 3001873 | Rail, Top |
|
- | |||||
| 11 | 5303207200 | Seal |
|
- | |||||
| 12 | 5308017244 | Louver |
|
- | |||||
| 13 | 5303001844 | Clip-link |
|
- | |||||
| 14 | 5314949603 | Seal |
|
- | |||||
| 15 | 3015312 | Screw |
|
- | |||||
| 16 | 3202966 | Retainer |
|
- | |||||
| 17 | 5303276728 | Seal,retainer |
|
- | |||||
| 18 | 5303002458 | Louver & Link |
|
- | |||||
| 19 | 5303002164 | Link Rh |
|
- | |||||
| 20 | 5303002165 | Link-lh |
|
- | |||||
| 21 | 5308017294 | Track - Filter |
|
- | |||||
| 22 | 5308017249 | Filter |
|
- | |||||
| 23 | 3204214 | Front-complete |
|
- | |||||
| 24 | 5308008175 | Screw-front |
|
- | |||||
| 25 | 5308014101 | Seal-mullion |
|
- | |||||
| 26 | 08016330 | Insert |
|
- | |||||
| 27 | 5308016109 | Knob-control |
|
- | |||||
| 28 | 5303002189 | Knob-slide |
|
- | |||||
| 29 | 3202876 | Dial Plate |
|
- | |||||
| 30 | 5303001984 | Seal |
|
- | |||||
| 31 | 5303001775 | Spacer |
|
- | |||||
| 32 | 5303016551 | Panel |
|
- | |||||
| 33 | 3016224 | Bracket Rh |
|
- | |||||
| 34 | 3016225 | Bracket Lh |
|
- | |||||
| 35 | 3001815 | Bracket (2) |
|
- | |||||
| 36 | 3007756 | Screw |
|
- | |||||
| 37 | 3007759 | Nut |
|
- | |||||
| 38 | 3002735 | Screw (4) |
|
- | |||||
| 39 | 3017023 | Nut (4) |
|
- | |||||
| 40 | 08017126 | Name Plate |
|
- | |||||
| 41 | 5303271902 | Plug Btn |
|
- | |||||
| 42 | 3002801 | Screw-frame |
|
- | |||||
| 43 | 5308016198 | Door |
|
- | |||||
| 44 | 5308010914 | Clip-front To Base |
|
- | |||||
| 1A | 5303210207 | Grille Rear (non-illustrated) |
|
- | |||||
| 1B | 5303271903 | Nameplate-grille (non-illustrated) |
|
- |
