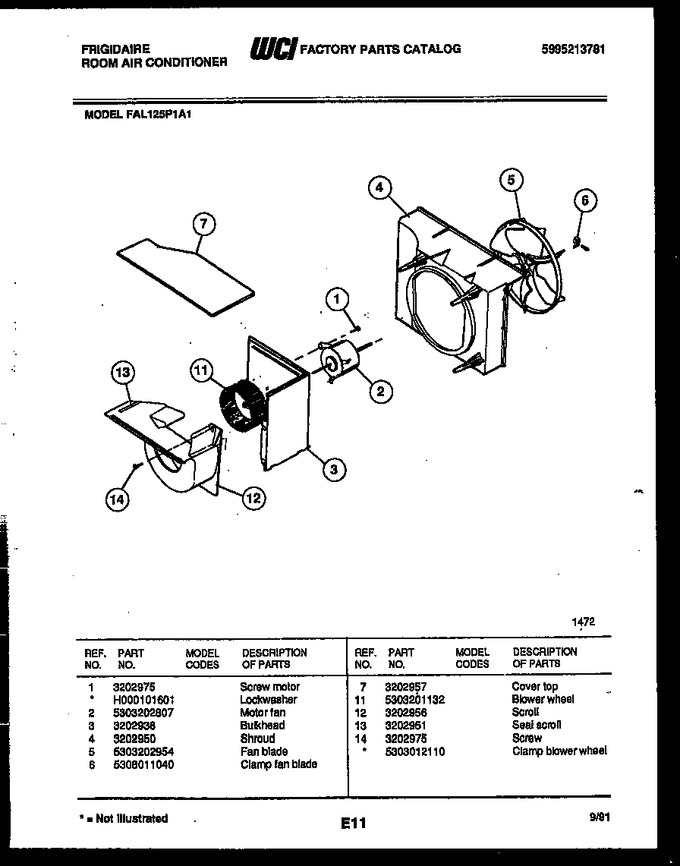

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202975 | Screw Motor |
|
- | |||||
| 2 | 5303202807 | Motor-fan |
|
- | |||||
| 3 | 3202938 | Bulkhead |
|
- | |||||
| 4 | 3202950 | Shroud |
|
- | |||||
| 5 | 5303202954 | Fan Blade |
|
- | |||||
| 6 | 5308011040 | Clamp - Fan Blade |
|
- | |||||
| 7 | 3202957 | Cover-top |
|
- | |||||
| 11 | 5303201132 | Blower Wheel |
|
- | |||||
| 12 | 3202956 | Scroll |
|
- | |||||
| 13 | 3202951 | Seal-scroll |
|
- | |||||
| 14 | 3202975 | Screw |
|
- | |||||
| *55149 | 5303012110 | Clamp - Blower Wheel |
|
$ 8.14 | |||||
| 1A | H000101601 | Lockwasher |
|
- |
