SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

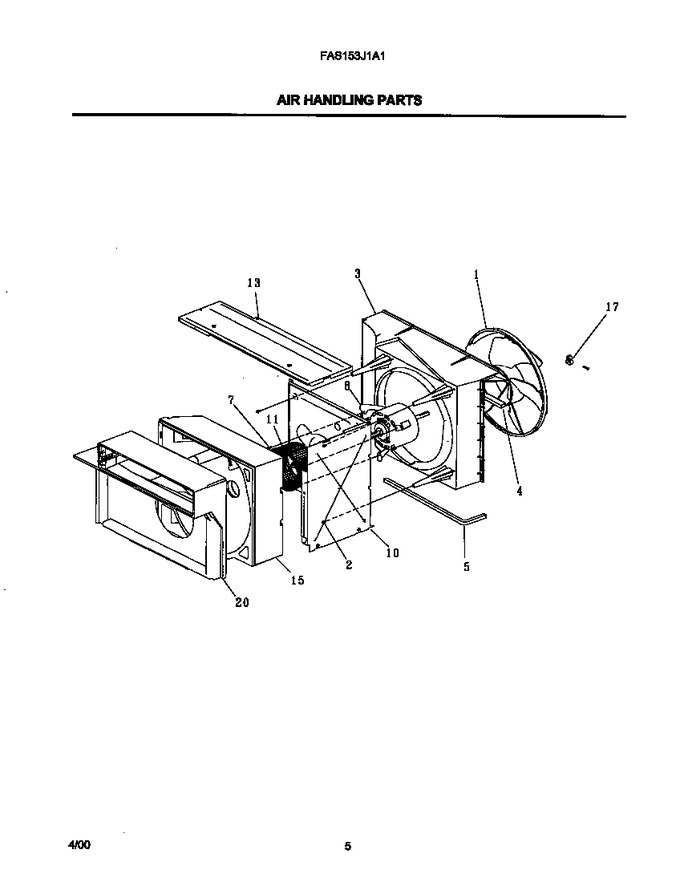

| 1 | 5303311048 | Fan Blade,with Clamp |
|
- | |||||
| 2 | 3202975 | Screw`10-16 X 0.72 ,square Drive |
|
- | |||||
| 3 | 309623201 | Condenser Shroud-one Pc. |
|
$ 99.33 | |||||
| 5 | 5303015311 | Seal,fan Housing ,lower |
|
- | |||||
| 7 | 5303015427 | Screw,truss Head ,8-18ab X 0.47 |
|
- | |||||
| 8 | 5304407974 | Motor-fan Ge 3sp 115/60 48fr |
|
- | |||||
| 10 | 309623401 | Bulkhead,air System |
|
- | |||||
| 11 | 309633001 | Blower Wheel,plastic ,with Clamp |
|
- | |||||
| 13 | 309630301 | Cover-blower Wheel,top |
|
- | |||||
| 15 | 309630101 | Housing-blower,evap Scroll |
|
- | |||||
| 20 | 309630201 | Plate-blower Housing,scroll Plate |
|
- |
