01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts

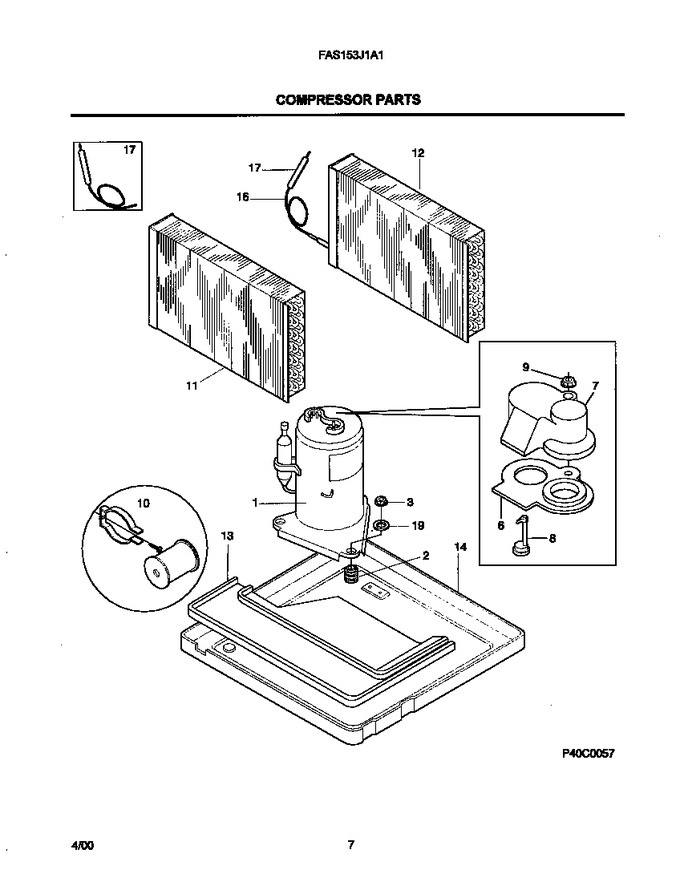

05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303925103 | Compressor,w/overload |
|
- | |||||
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 5303272298 | Gasket-cover |
|
- | |||||
| 7 | 3206230 | Cover-terminal |
|
- | |||||
| 8 | 5303016697 | Overload Protector |
|
- | |||||
| 9 | 5303211017 | Nut-cover |
|
- | |||||
| 11 | 309634103 | Evap-assy Hdtc 2row/19fpi |
|
- | |||||
| 12 | 5303303600 | Condenser |
|
- | |||||
| 13 | 309623501 | Tray-evaporator |
|
- | |||||
| 14 | 309632907 | Base-stud Assy (ncs1403-g96y) |
|
- | |||||
| 16 | 5303289577 | Capillary Tube,cut-to-size |
|
- | |||||
| 17 | 5304417722 | Tube-process Cnd |
|
- | |||||
| 19 | 5303002664 | Washer,compressor Mtg |
|
- |
