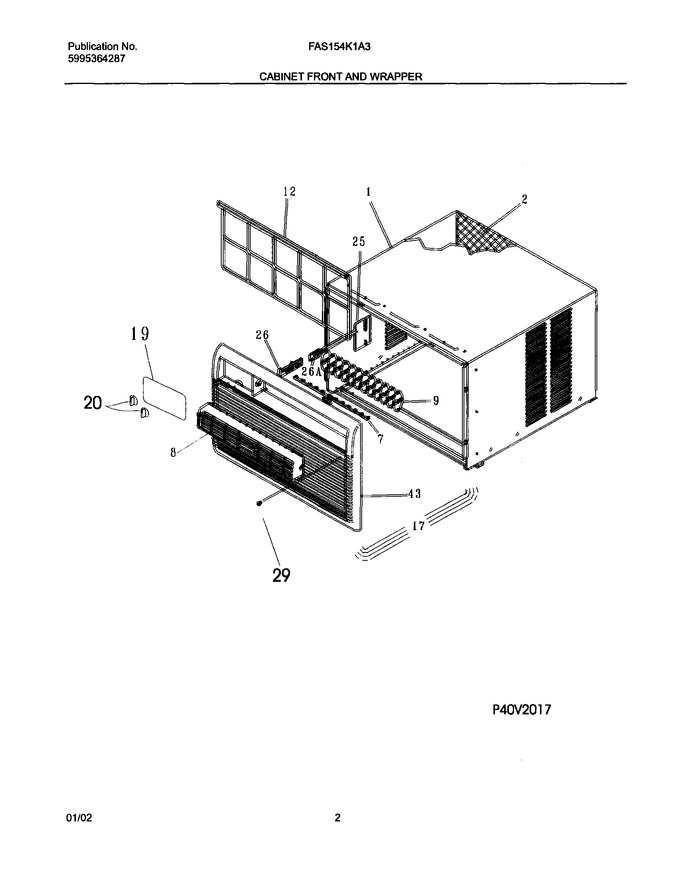

03 - Cabinet Front And Wrapper


05 - Controls


07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309632704		Cabinet,sleeve ,top Louvers		Appelez-nous	-
2	309632804		Grille,rear ,with Rail		Appelez-nous	-
7	309631104		Link-handle,vertical Louver		Appelez-nous	-
8	309633305		Louver Assy,horizontal ,incl-7,8x,9		Appelez-nous	-
9	309631004		Louver,vertical		Appelez-nous	-
12	309631404		Filter-air,molded Plastic		Appelez-nous	-
17	309633205		Front-cabinet,complete Assy		Appelez-nous	-
19	309633506		Dial-plate		Appelez-nous	-
20	309307013		Knob-control		Appelez-nous	-
25	309321401		Door-vent,actuator		Appelez-nous	-
26	309330404		Handle-vent,gray		Appelez-nous	-
29	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
43	309630904		Panel,cabinet Front		Appelez-nous	-
26A	309330206		Detent Assy-vent,with Adhesive		Appelez-nous	-
NI	5303001775		Spacer - Dial Plate		Appelez-nous	-
NI	309630804		Louver,horizontal		Appelez-nous	-
