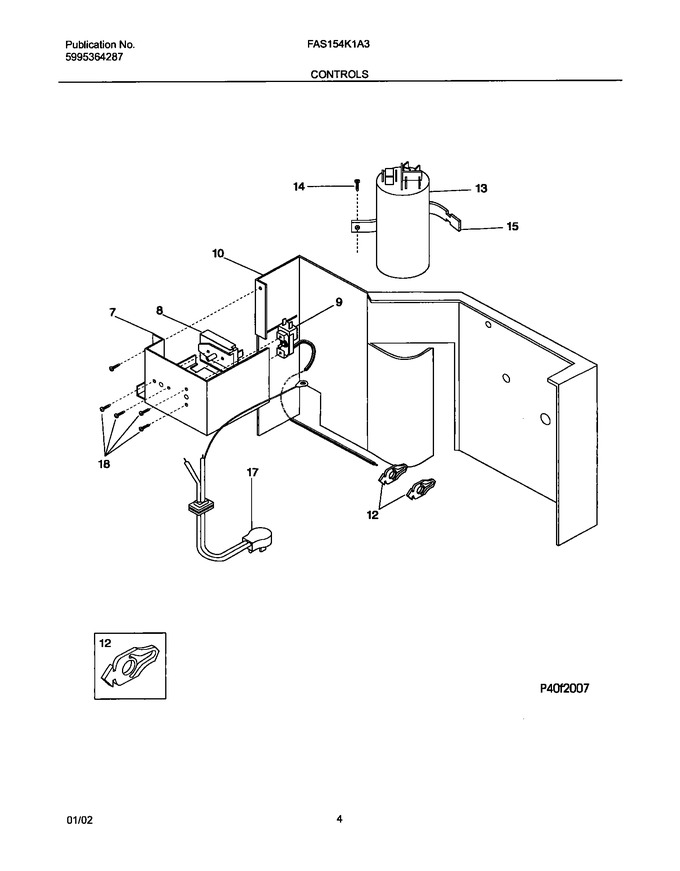

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309630401		Control Box		Appelez-nous	-
10	309623602		Bulkhead,control System		Appelez-nous	-
12	309331801		Clip-control Bulb,(2)		Appelez-nous	-
14	5303285199		Screw,phillips ,8-18 X 0.38 ,sq.recess ,truss Head		Appelez-nous	-
15	5303303077		Strap - Capacitor		Appelez-nous	-
17	309343111		Cord-electric Power,type A ,14 Awg		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
F13	5303291523		Capacitor,370 V ,10+40 Mfd				$ 186.32
F8	5303323284		Switch-selector		Appelez-nous	-
F9	5304408295		Control-temperature,20 Amp		Appelez-nous	-
NI	309111201		Grommet,wire Protector		Appelez-nous	-
NI	3200761		Spacer - Control Bulb		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
