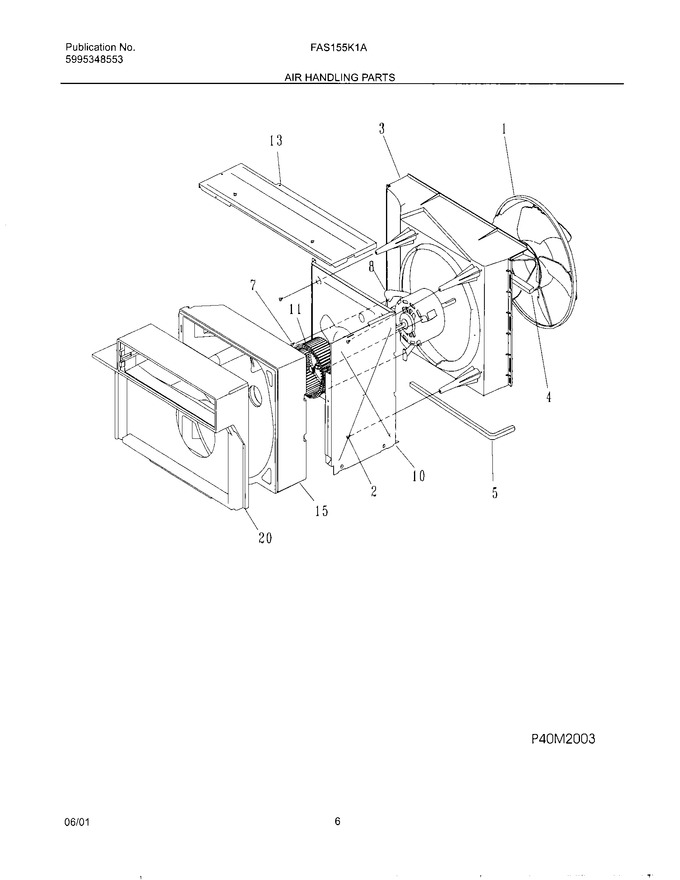

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303311048 | Fan Blade,with Clamp |
|
- | |||||
| 2 | 3202975 | Screw`10-16 X 0.72 ,square Drive |
|
- | |||||
| 3 | 309623201 | Shroud-condenser,one Piece |
|
$ 99.33 | |||||
| 5 | 5303015311 | Seal,fan Housing ,lower |
|
- | |||||
| 7 | 5303015427 | Screw,truss Head ,8-18ab X 0.47 |
|
- | |||||
| 8 | 309630605 | Motor-fan,heshan |
|
- | |||||
| 10 | 309623401 | Bulkhead,air System |
|
- | |||||
| 11 | 309633001 | Blower Wheel,plastic ,with Clamp |
|
- | |||||
| 13 | 309630301 | Cover-blower Wheel,top |
|
- | |||||
| 15 | 309630101 | Housing-blower,evap Scroll |
|
- | |||||
| 20 | 309630201 | Plate-blower Housing,scroll Plate |
|
- |
