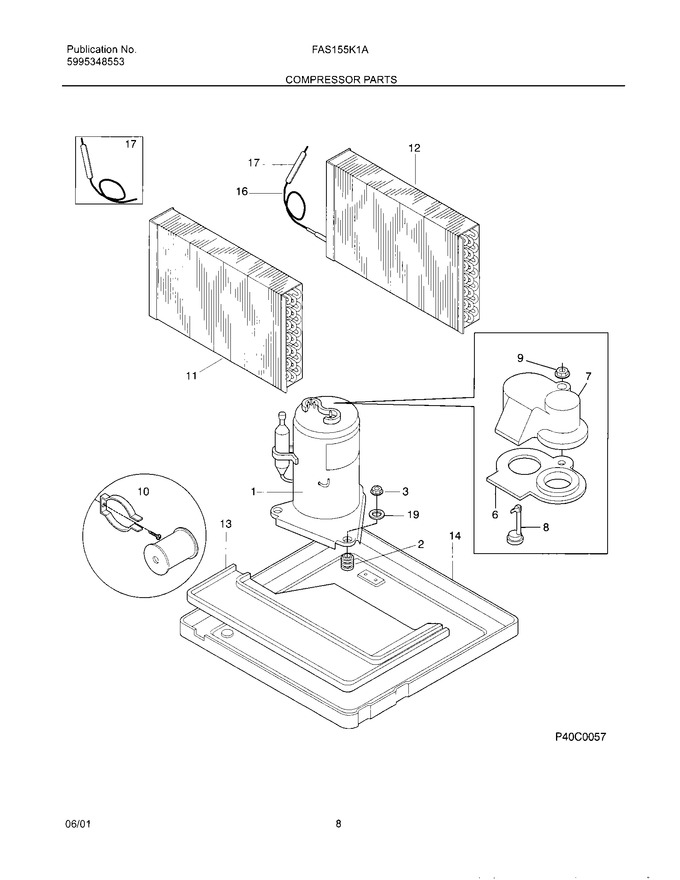

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303925103 | Compressor,w/overload |
|
- | |||||
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 7 | 3206230 | Cover-terminal |
|
- | |||||
| 8 | 5303016697 | Overload Protector |
|
- | |||||
| 9 | 5303211017 | Nut,terminal Cover |
|
- | |||||
| 11 | 309634103 | Evaporator |
|
- | |||||
| 12 | 5303303600 | Condenser |
|
- | |||||
| 13 | 309623501 | Tray-evaporator |
|
- | |||||
| 14 | 309632907 | Base-compressor |
|
- | |||||
| 16 | 5303289577 | Capillary Tube,40 Inch Long ,cut-to-length |
|
- | |||||
| 19 | 309112501 | Washer,metallic |
|
- | |||||
| NI | 5303272298 | Gasket-cover,terminal |
|
- | |||||
| NI | 5303002664 | Washer,compressor Mtg |
|
- |
