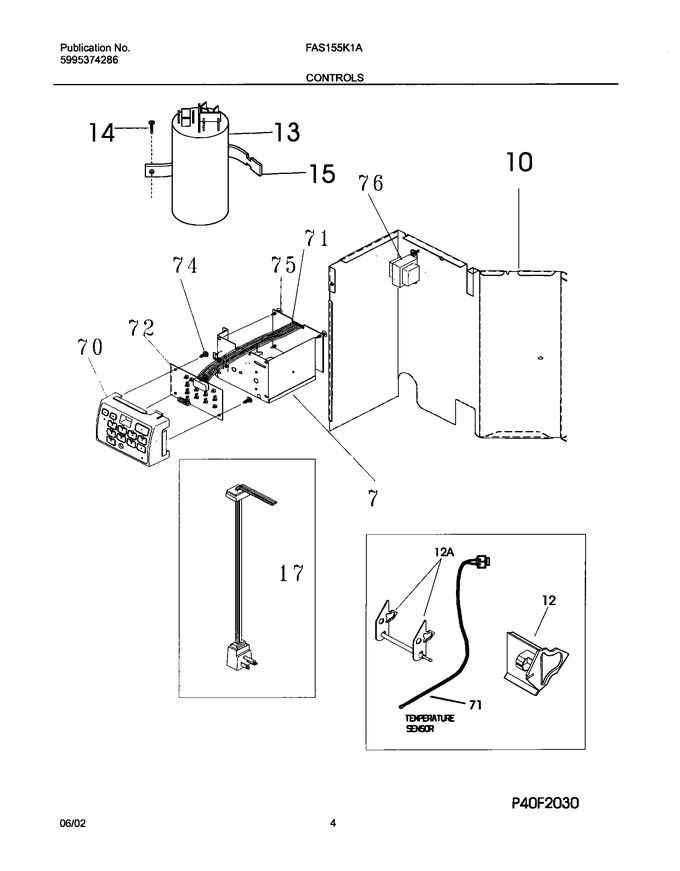

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309630403		Control Box		Appelez-nous	-
10	309623602		Bulkhead,control System		Appelez-nous	-
12	5304413782		Holder,thermistor ,w/seal		Appelez-nous	-
14	5303285199		Screw,ph Truss Hd ,8-18 X 0.38 ,grounding		Appelez-nous	-
15	5303303077		Strap,capacitor Mtg.		Appelez-nous	-
17	309343111		Cord-electric Power,type A ,14 Awg		Appelez-nous	-
70	309342401		Enclosure,elec Control Mt		Appelez-nous	-
71	309340503		Pc Board,power ,w/temp Sensor		Appelez-nous	-
72	309340701		Pc Board,input		Appelez-nous	-
74	3201861		Screw,6-20ab X 0.38   (Replaces: 5303301590)				$ 0.76
75	5304413781		Support-pc Board		Appelez-nous	-
76	309111601		Transformer,120/12 Volt		Appelez-nous	-
12A	309331801		Clip,sensor Retainer ,(2)		Appelez-nous	-
F13	5303291523		Capacitor,370 V ,10+40 Mfd				$ 186.32
NI	5304417643		Ribbon Protector		Appelez-nous	-
NI	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
NI	309111201		Grommet,wire Protector		Appelez-nous	-
NI	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
