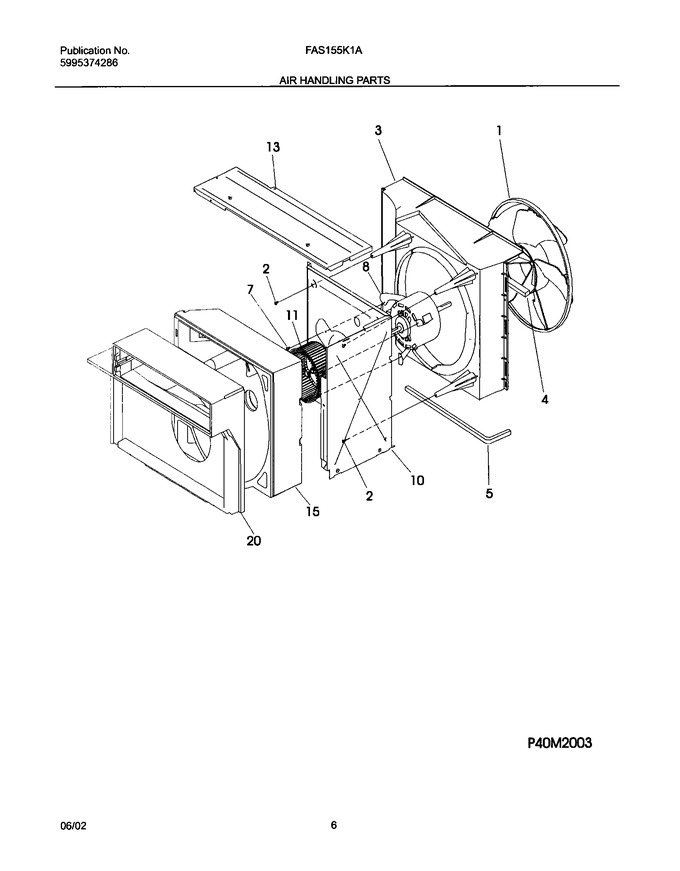

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Cabinet
05 - Controls
07 - Air Handling
09 - System
11 - Window Mounting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3202975 | Screw,10-16ab X 0.72 ,square Drive |
|
- | |||||
| 3 | 309623201 | Shroud,cond Fan Motor |
|
$ 99.33 | |||||
| 4 | 5303212504 | Seal,sleeve/shroud ,23.72`` X 1.25`` ,bottom |
|
- | |||||
| 5 | 5303015311 | Seal,fan Housing ,19.56`` X 0.50`` ,lower |
|
- | |||||
| 7 | 5303015427 | Screw,truss Head ,8-18ab X 0.47 |
|
- | |||||
| 10 | 309623401 | Bulkhead,air System |
|
- | |||||
| 11 | 309633001 | Blower Wheel,plastic ,with Clamp |
|
- | |||||
| 13 | 309630302 | Cover,blower Wheel ,top |
|
- | |||||
| 15 | 309630101 | Housing,blower Scroll |
|
- | |||||
| 20 | 309630201 | Plate,scroll Cover |
|
- | |||||
| F1 | 5303311048 | Fan Blade,with Clamp |
|
- | |||||
| F8 | 309630609 | Motor-fan |
|
- |
