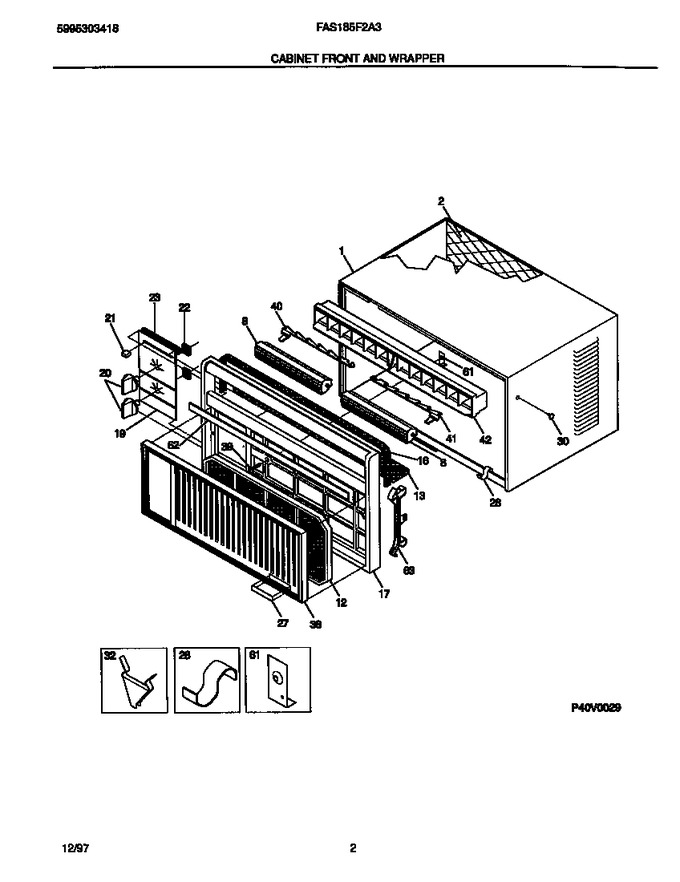

SELECT A DIAGRAM

01 - Cover


02 - Cabinet Front And Wrapper


03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303303545		Wrapper		Appelez-nous	-
2	5303210207		Grill,rear		Appelez-nous	-
8	5303299967		Louver,(2)		Appelez-nous	-
12	5308017190		Filter		Appelez-nous	-
13	08017353		Seal - Mullion		Appelez-nous	-
16	08017132		Seal		Appelez-nous	-
17	309611005		Front,cabinet ,complete		Appelez-nous	-
19	309624402		Dial Plate		Appelez-nous	-
20	5304402843		Knob-control,(2)		Appelez-nous	-
21	5304402841		Knob-slide		Appelez-nous	-
22	5303001775		Spacer, Plate		Appelez-nous	-
23	5303001984		Seal, Plate		Appelez-nous	-
28	5308010914		Clip-front To Base		Appelez-nous	-
30	08016091		Plug		Appelez-nous	-
32	5303001844		Clip-link, (2)		Appelez-nous	-
38	5304403266		Panel-front		Appelez-nous	-
39	134178901		Screw,truss Head ,8-18 X 0.625 ,front ,(2),square Drive   (Replaces: 5303293767)				$ 14.89
40	309321803		Link-louver, Lh		Appelez-nous	-
41	309321804		Link-louver,rh		Appelez-nous	-
42	5303002459		Louvers W/ Link		Appelez-nous	-
61	5303016223		Bracket-front		Appelez-nous	-
62	5304402847		Insert-mullion		Appelez-nous	-
63	5308017138		Track-filter (2)		Appelez-nous	-
*34040	5303212504		Seal-bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
