SELECT A DIAGRAM

01 - Cover


02 - Cabinet Front And Wrapper

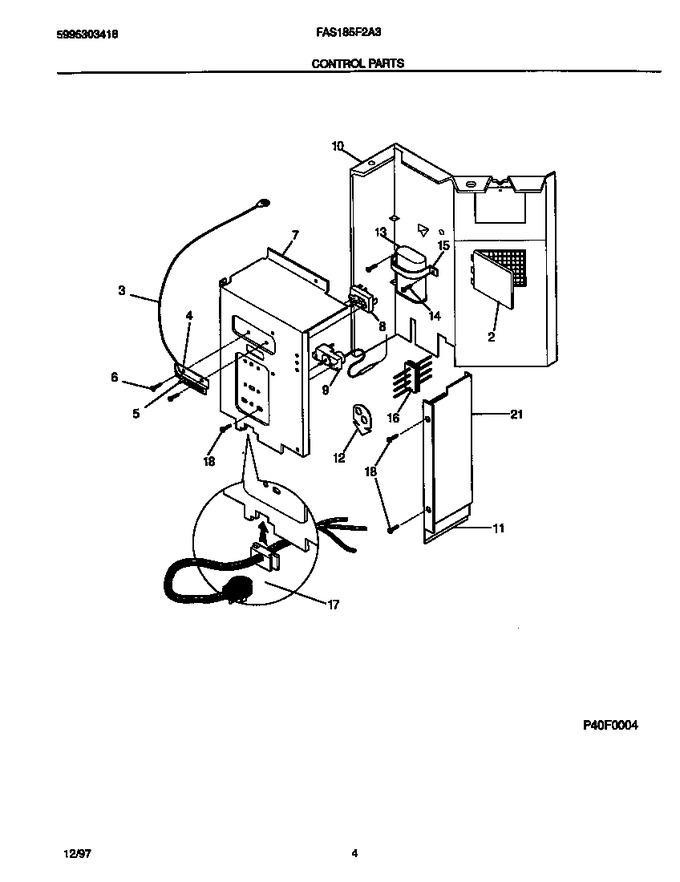

03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303295752		Door-ventilator		Appelez-nous	-
3	5303015298		Cable-vent Control		Appelez-nous	-
4	5303202999		Retainer		Appelez-nous	-
5	5303015299		Actuator Arm		Appelez-nous	-
6	3015312		Screw, 8-18 X 0.47		Appelez-nous	-
7	5303296650		Panel-control		Appelez-nous	-
8	5303201621		Switch-selector		Appelez-nous	-
9	5303316599		Control-temperature		Appelez-nous	-
10	5303295753		Partition - Control Area		Appelez-nous	-
11	5303017807		Divider - Vertical		Appelez-nous	-
12	5303211009		Clip-control Bulb		Appelez-nous	-
13	5303317228		Capacitor,370 V ,30+6		Appelez-nous	-
14	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
15	5303303077		Strap - Capacitor		Appelez-nous	-
16	5303209983		Wiring Harness		Appelez-nous	-
17	5303301886		Cord-electric Power,230 V		Appelez-nous	-
18	5303007754		Screw, .138-32 X .188		Appelez-nous	-
21	5303303011		Insulation - Divider		Appelez-nous	-
