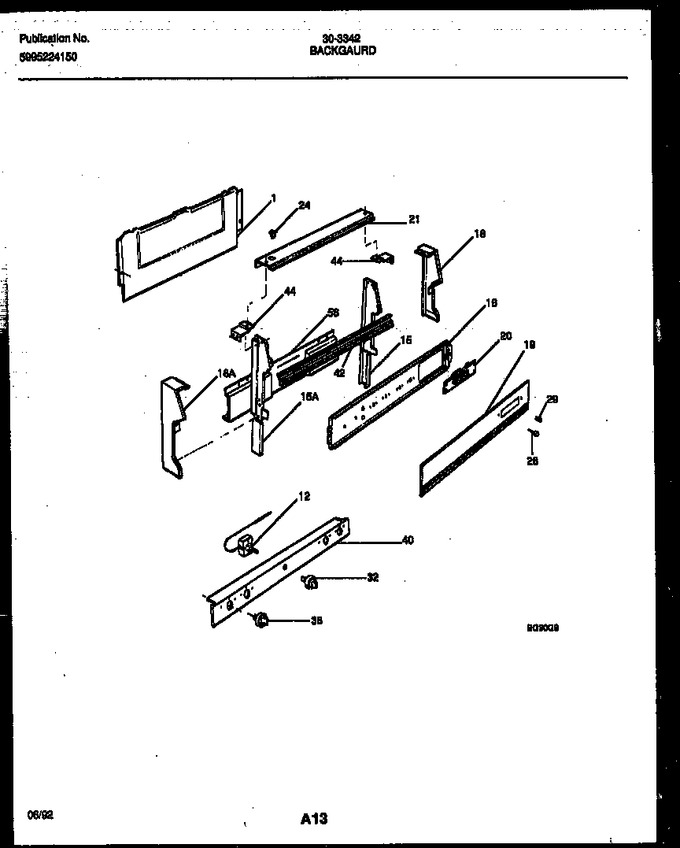

02 - Backguard
03 - Burner, Manifold And Gas Control
04 - Body Parts
05 - Cooktop And Broiler Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316028701 | Shield, Rear Wall, Backguard |
|
- | |||||
| 12 | 316032411 | Thermostat (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 15 | 316023102 | Channel-support, Backguard Rh |
|
- | |||||
| 16 | 5303274449 | Plate-instrument Mtg |
|
- | |||||
| 18 | 5303272832 | Cap-end, Rh |
|
- | |||||
| 19 | 5303273107 | Glass-control Panel |
|
- | |||||
| 20 | 5303272309 | Clock T.o.d. |
|
- | |||||
| 21 | 5303283554 | Trim Canopy/shield |
|
- | |||||
| 24 | 5303208662 | Switch-rocker |
|
- | |||||
| 28 | 5303272306 | Button-clock, Push, (2) |
|
- | |||||
| 29 | 5303272305 | Knob-clock, Button/slide |
|
$ 38.80 | |||||
| 32 | 3205115 | Knob, Thermostat |
|
- | |||||
| 36 | 5303209616 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 5303273109 | Panel-manifold |
|
- | |||||
| 42 | 5303272839 | Trim/vent |
|
- | |||||
| 44 | 5303272831 | Bracket-backguard, (2) |
|
- | |||||
| 56 | 5303272855 | Deflector Flue |
|
- | |||||
| 15A | 316023103 | Channel-support, Backguard Lh |
|
- | |||||
| 18A | 5303272833 | Cap-end, Lh |
|
- |
