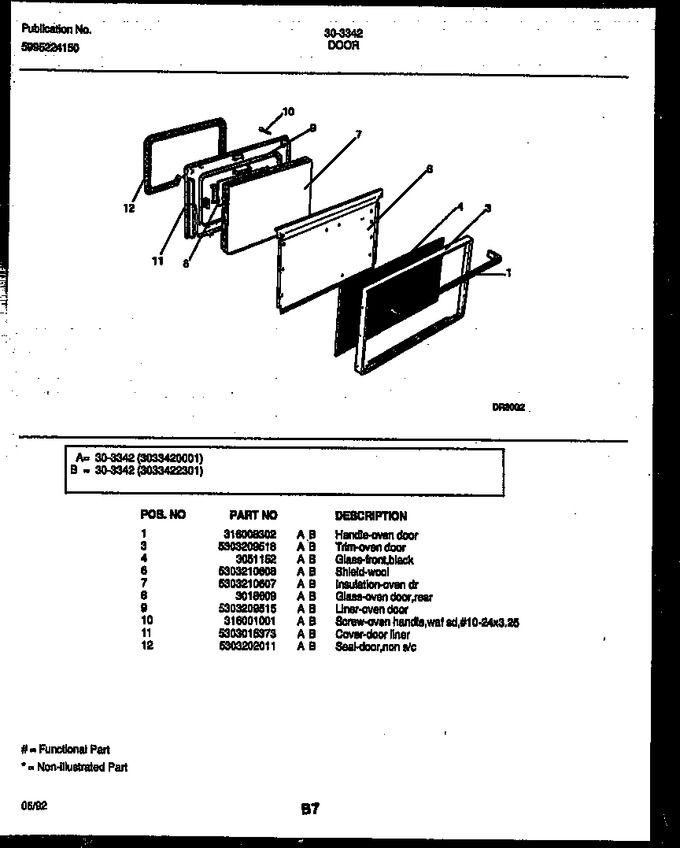

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316008302 | Handle-oven Door |
|
- | |||||
| 3 | 5303209518 | Trim-oven Door |
|
- | |||||
| 4 | 3051152 | Glass-front, Black |
|
- | |||||
| 6 | 5303210608 | Shield-wool |
|
- | |||||
| 7 | 5303210607 | Insulation-oven Dr |
|
- | |||||
| 8 | 3018609 | Glass-oven Door (rear) |
|
- | |||||
| 9 | 5303209515 | Liner-oven Door |
|
- | |||||
| 10 | 316001001 | Screw-oven Handle, Waf Sd, 10-24 X 3.25 |
|
- | |||||
| 11 | 5303015373 | Cover-door Liner |
|
- | |||||
| 12 | 5303202011 | Seal-door, Non S/c |
|
$ 166.84 |
