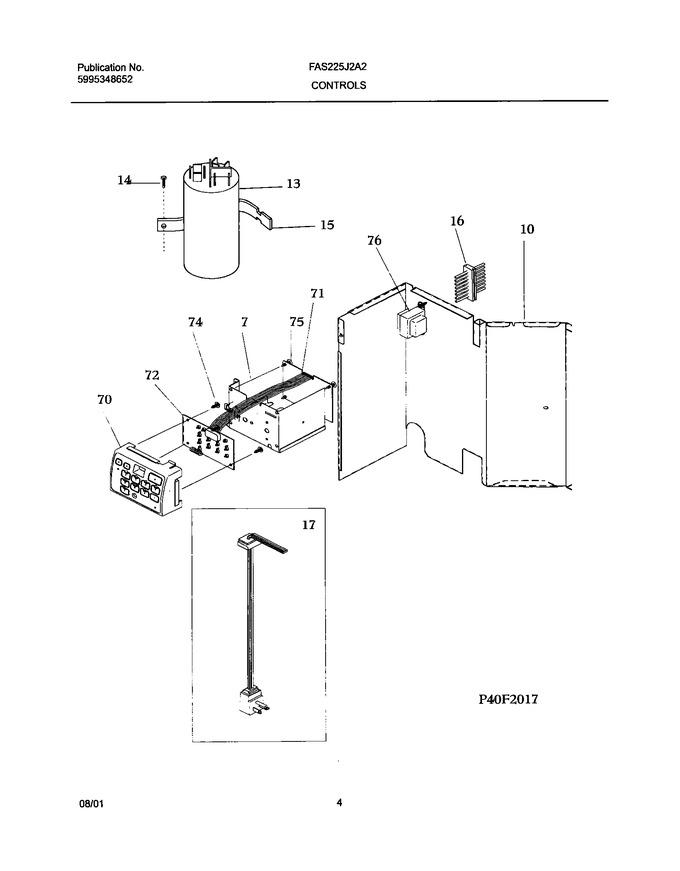

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309630403		Control Box		Appelez-nous	-
10	309623601		Bulkhead,control System		Appelez-nous	-
12	5304413782		Holder-thermistor,assy With Seal		Appelez-nous	-
14	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
15	5303303077		Strap - Capacitor		Appelez-nous	-
17	309343113		Cord-service,type-d 14awg		Appelez-nous	-
38	5308009156		Screw,10-16ab X 0.500 , Motor Drive		Appelez-nous	-
71	309350401		Board-power,sagem		Appelez-nous	-
72	309350403		Board-input,sagem Hd				$ 170.67
74	3201861		Screw-bracket   (Replaces: 5303301590)				$ 0.76
75	5304413781		Support-pc Board		Appelez-nous	-
76	309111602		Transformer,240/12 Volt		Appelez-nous	-
F13	5303316594		Capacitor,370 V ,7.5x35 Mfd		Appelez-nous	-
F16	5304408751		Wiring Harness		Appelez-nous	-
NI	5304417643		Ribbon Protector		Appelez-nous	-
NI	5304414108		Holder-thermistor,without Seal		Appelez-nous	-
NI	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
