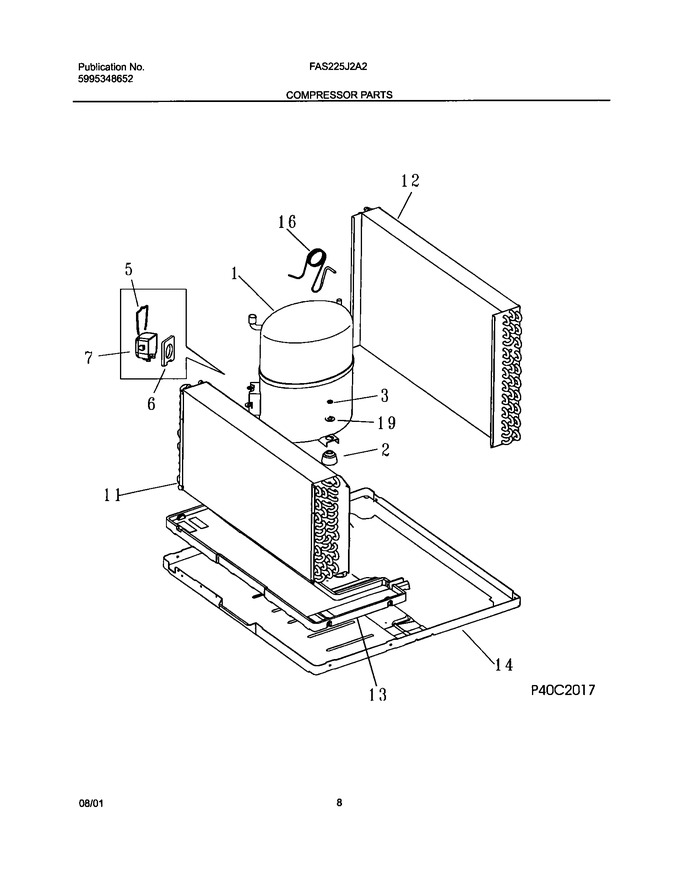

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303286606 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 5 | 5303002069 | Clamp,terminal Cover |
|
- | |||||
| 6 | 5303002068 | Gasket,terminal Cover |
|
- | |||||
| 7 | 5303002067 | Cover,compr Terminal |
|
- | |||||
| 13 | 309623501 | Tray-evaporator |
|
- | |||||
| 14 | 309632906 | Base Stud Assy |
|
- | |||||
| 19 | 309112501 | Washer,metallic |
|
- | |||||
| F1 | 5304408297 | Compressor,h29b24uabcx |
|
- | |||||
| F11 | 309634201 | Evaporator |
|
- | |||||
| F12 | 5304408769 | Condenser-assy,3r/15fpi |
|
- | |||||
| F16 | 5303209547 | Capillary Tube,50 Inch Long |
|
- | |||||
| NI | 5303002664 | Washer,compressor Mtg |
|
- |
