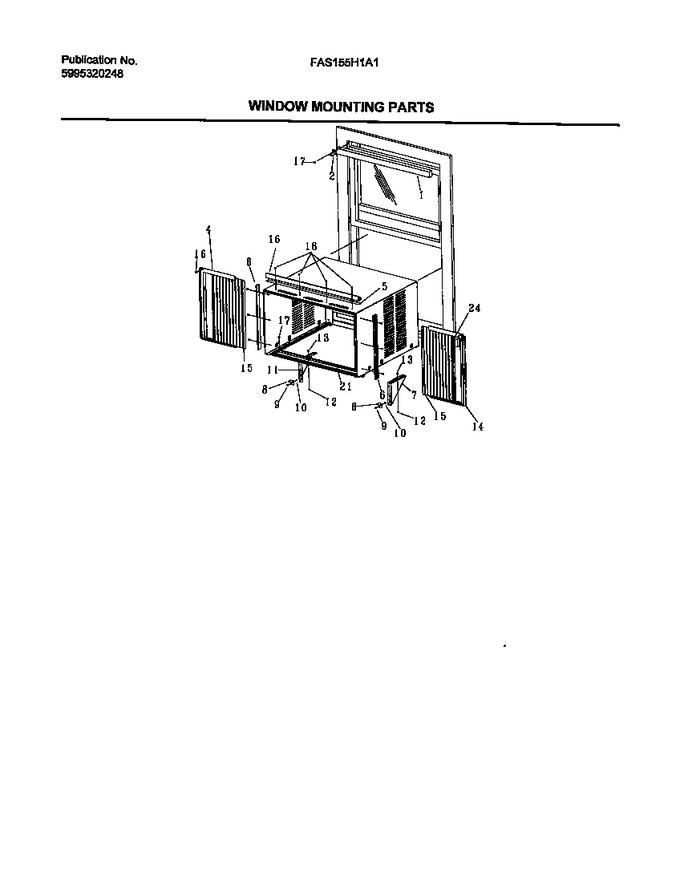

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front/wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304407729 | Seal-window |
|
- | |||||
| 2 | 5303211056 | Bracket |
|
- | |||||
| 4 | 5303302304 | Frame, Lh |
|
- | |||||
| 5 | 5304409250 | Seal-top Rail |
|
- | |||||
| 6 | 5303301765 | Retainer - Accordian |
|
- | |||||
| 7 | 5303301254 | Support, Rh |
|
- | |||||
| 8 | 3001815 | Bracket - Support |
|
- | |||||
| 9 | 3007756 | Screw |
|
- | |||||
| 10 | 3007759 | Nut - Bracket |
|
- | |||||
| 11 | 5303301255 | Support, Lh |
|
- | |||||
| 12 | 3017023 | Nut,hex ,10-32 ,2 |
|
- | |||||
| 13 | 5303281649 | Screw,support |
|
- | |||||
| 14 | 5303302305 | Frame, Rh |
|
- | |||||
| 15 | 5303302306 | Accordian |
|
- | |||||
| 16 | 5303301777 | Rail - Top |
|
- | |||||
| 17 | 3002803 | Screw-wood |
|
- | |||||
| 18 | 8012680 | Screw,rail Top |
|
- | |||||
| 21 | 5303212504 | Seal-bottom |
|
- | |||||
| 24 | 3002801 | Screw |
|
- | |||||
| *01201 | 309635401 | Kit-mntng-hdso A-kit |
|
- | |||||
| *01202 | 5304409248 | Hardware Kit |
|
- | |||||
| *01203 | 5304409249 | Seal-shipping Screw Holes |
|
- |
