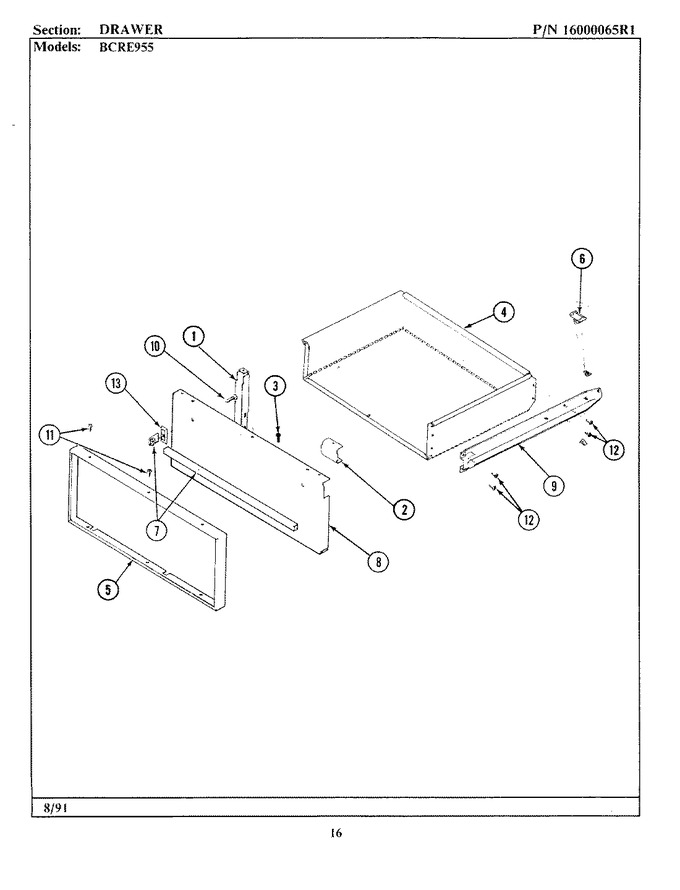

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3802F044-51 | Brace, Drawer | 00 |
|
- | ||||
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 2 | 3801F031-51 | Bracket | 00 |
|
- | ||||
| 3 | 8003P003-60 | Bumper | 00 |
|
- | ||||
| 4 | 3405F008-80 | Drawer, Service | 00 |
|
- | ||||
| 5 | 7706P206-60 | Frame, Drawer | 00 |
|
- | ||||
| 6 | 8016P004-60 | Glide, Drawer | 04 |
|
- | ||||
| 6 | 8016P004-60 | Glide, Drawer | 00 |
|
- | ||||
| 6 | 8016P009-60 | Glide, Drawer | 04 |
|
- | ||||
| 7 | 7701P046-60 | Handle, Drawer | 00 |
|
- | ||||
| 8 | 2416F022-70 | Panel, Drawer (blk) | 00 |
|
- | ||||
| 9 | 3406F026-80 | Runner, Inner | 04 |
|
- | ||||
| 9 | 3406F020-80 | Runner, Inner | 00 |
|
- | ||||
| 10 | WP3400074 | Screw (Replaces: 7101P068-60) | 00 |
|
$ 6.47 | ||||
| 11 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 00 |
|
Immediately | $ 12.62 | |||
| 12 | 7101P225-60 | Screw, Svc Door | 00 |
|
- | ||||
| 13 | 8010P044-60 | Spacer, Handle (black) | 00 |
|
- |
