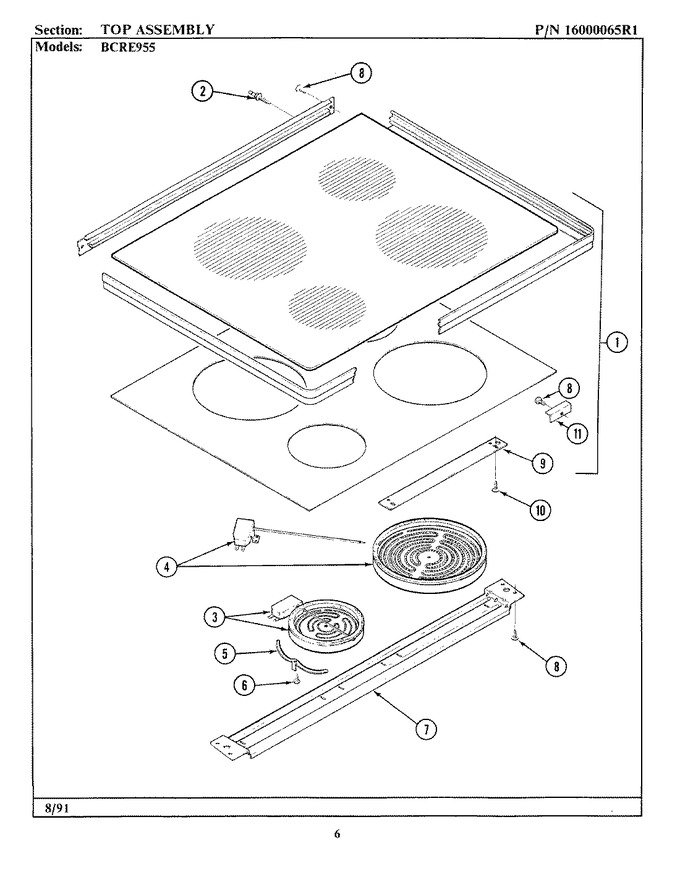

07 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | CERAMABRYTE | Cleaner, Elco (Replaces: 8308P002-60) | 00 |
|
Immediately | $ 9.95 | |||
| 1 | 5425A024-60 | Glass Top Assy (bcre995) | 00 |
|
- | ||||
| 1 | WA906B | Scraper, Razor (Replaces: 8312P001-60) | 00 |
|
Immediately | $ 4.86 | |||
| 2 | 8010P071-60 | Spacer, Top | 00 |
|
- | ||||
| 3 | W10823704 | Element W/receptacle (6``) (Replaces: 7406P074-60) | 15 |
|
Immediately | $ 309.01 | |||
| 3 | W10823704 | Element, Std (Replaces: 7406P058-60) | 00 |
|
Immediately | $ 309.01 | |||
| 4 | W10823707 | Element, Giant (Replaces: 7406P057-60) | 00 |
|
Immediately | $ 316.13 | |||
| 4 | W10823707 | Element W/receptacle (8``) (Replaces: 7406P073-60) | 15 |
|
Immediately | $ 316.13 | |||
| 5 | 8004P015-60 | Support, Element | 00 |
|
- | ||||
| 6 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 00 |
|
$ 6.98 | ||||
| 7 | 3807F229-45 | Support | 00 |
|
- | ||||
| 8 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 00 |
|
Immediately | $ 12.62 | |||
| 9 | 3801F125-80 | Bracket, Main Top Retainer | 00 |
|
- | ||||
| 10 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 00 |
|
$ 6.70 | ||||
| 11 | 8004P023-60 | Clip Element Support | 00 |
|
- | ||||
| NI | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 00 |
|
$ 6.98 |
