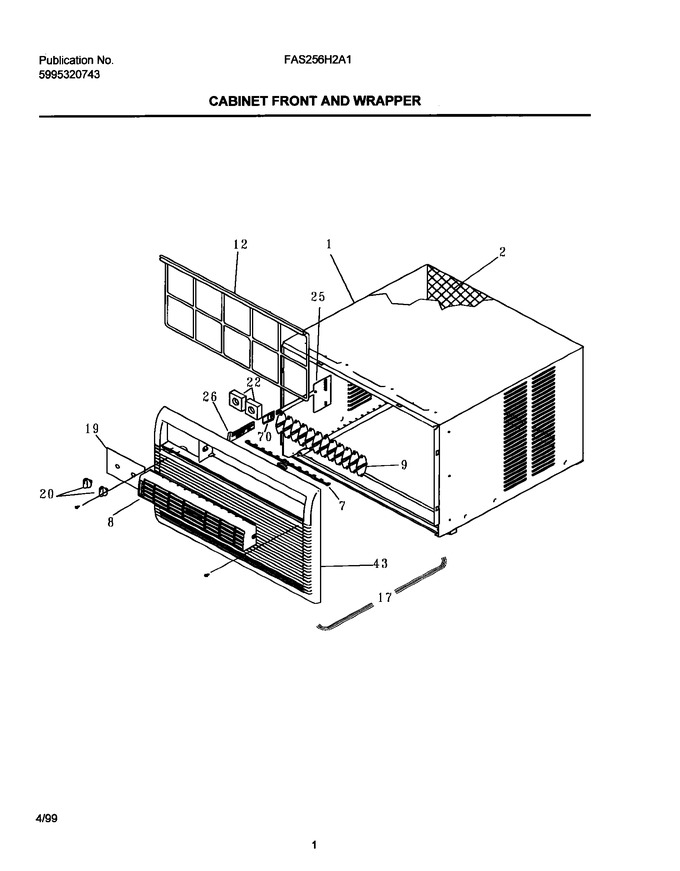

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Front And Wrapper
05 - Control Parts
07 - Air Handling Parts
09 - Compressor
10 - Window Mounting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309632701 | Slv-seal Assy Domestic |
|
- | |||||
| 2 | 309632801 | Grill&rr Rail Asm-hdtc |
|
- | |||||
| 7 | 309631101 | Link |
|
- | |||||
| 8 | 309633901 | Horizon Louver |
|
- | |||||
| 9 | 309631001 | Vertical Louver |
|
- | |||||
| 12 | 309634001 | Filter-molded Bldr Beige |
|
- | |||||
| 17 | 309633203 | Front Asm-fac Hdtc Bldr |
|
- | |||||
| 19 | 309633503 | Plate-dial 3/3 Fac |
|
- | |||||
| 20 | 309307006 | Knob-control(2005;w/7005) |
|
- | |||||
| 22 | 5303001775 | Spacer, Plate |
|
- | |||||
| 25 | 309321401 | Door-vent,actuator |
|
- | |||||
| 26 | 309330601 | Handle-vent Bldr Beige |
|
- | |||||
| 29 | 5304410881 | Screw-10-16 Phillips Hd. |
|
- | |||||
| 43 | 309633801 | Frame-frnt Hdtc Fac Bldr Bg |
|
- | |||||
| 70 | 309330202 | Detent-vent |
|
- | |||||
| NI | 309633303 | Louver Assy,beige,horizontal |
|
- |
