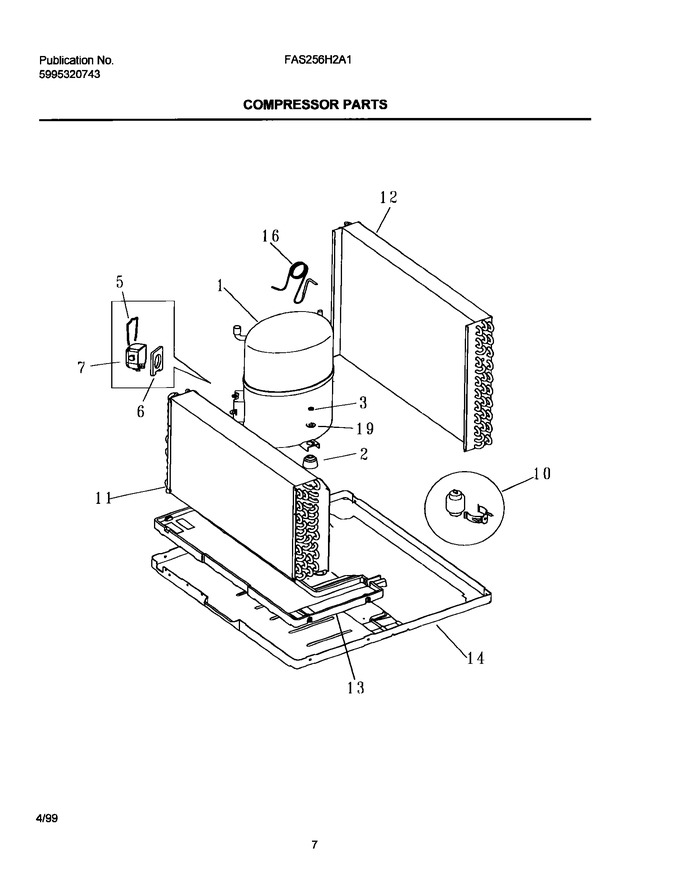

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Front And Wrapper
05 - Control Parts
07 - Air Handling Parts
09 - Compressor
10 - Window Mounting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303286606 | Grommet - Compressor, 3 |
|
- | |||||
| 3 | 5308006948 | Nut, Compressor, (3) |
|
- | |||||
| 5 | 5303002069 | Clamp - Cover |
|
- | |||||
| 6 | 5303002068 | Gasket - Cover |
|
- | |||||
| 7 | 5303002067 | Cover, Terminal |
|
- | |||||
| 13 | 309623501 | Tray-evaporator |
|
- | |||||
| 14 | 309632901 | Base/compr-stud Assy Hdso |
|
- | |||||
| 19 | 5303002664 | Washer - Compressor |
|
- | |||||
| F1 | 5304408299 | Compressor |
|
- | |||||
| F11 | 309634201 | Evap-assy Hdtc 3row/17fpi |
|
- | |||||
| F12 | 5303306719 | Condenser |
|
$ 574.61 |
