02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

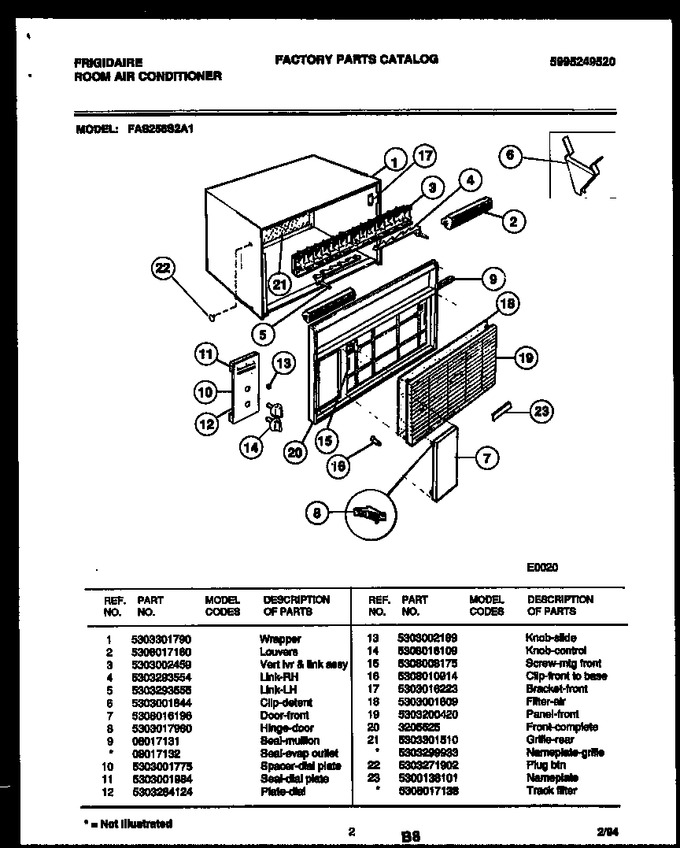

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303301790 | Wrapper |
|
- | |||||
| 2 | 5308017160 | Louvers |
|
- | |||||
| 3 | 5303002459 | Vert Lvr & Link Assy |
|
- | |||||
| 4 | 5303293554 | Link-rh |
|
- | |||||
| 5 | 5303293555 | Link-lh |
|
- | |||||
| 6 | 5303001844 | Clip-detent |
|
- | |||||
| 7 | 5308016196 | Door-front |
|
- | |||||
| 8 | 5303017980 | Hinge - Door |
|
- | |||||
| 9 | 08017131 | Seal-mullion |
|
- | |||||
| 10 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 11 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 12 | 5303284124 | Plate-dial |
|
- | |||||
| 13 | 5303002189 | Knob-slide |
|
- | |||||
| 14 | 5308016109 | Knob-control |
|
- | |||||
| 15 | 5308008175 | Screw-mtg Front |
|
- | |||||
| 16 | 5308010914 | Clip-front To Base |
|
- | |||||
| 17 | 5303016223 | Bracket-front |
|
- | |||||
| 18 | 5303001809 | Filter-air |
|
- | |||||
| 19 | 5303200420 | Panel-front |
|
- | |||||
| 20 | 3205525 | Front - Complete |
|
- | |||||
| 21 | 5303301510 | Grille-rear |
|
- | |||||
| 22 | 5303271902 | Plug Btn |
|
- | |||||
| 23 | 5300138101 | Nameplate |
|
- | |||||
| *92633 | 5308017138 | Track-filter |
|
- | |||||
| 21A | 5303299933 | Nameplate-grille (non-illustrated) |
|
- | |||||
| 9A | 08017132 | Seal-evap Outlet (non-illustrated) |
|
- |
