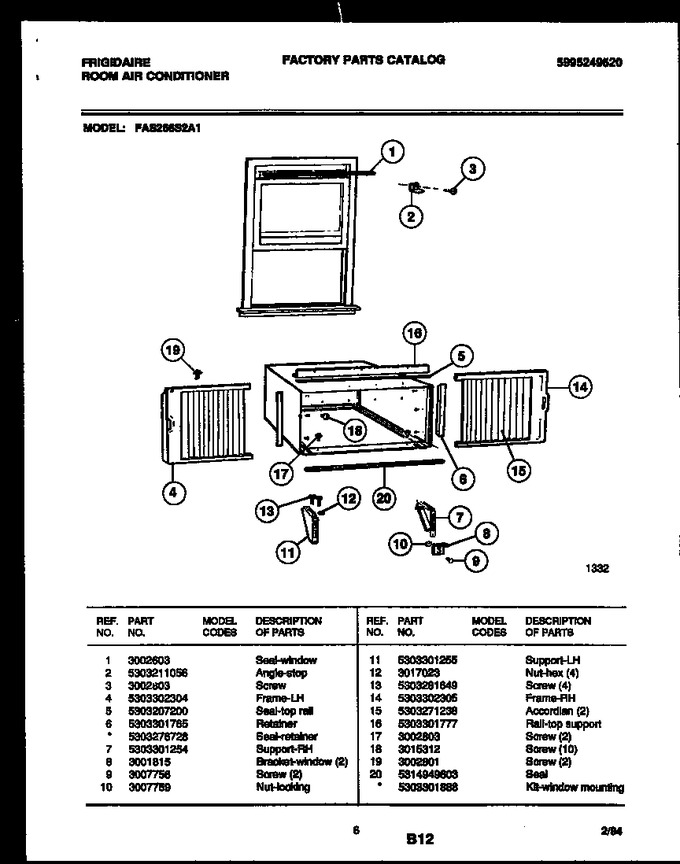

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3002603 | Seal-window |
|
- | |||||
| 2 | 5303211056 | Angle-stop |
|
- | |||||
| 3 | 3002803 | Screw |
|
- | |||||
| 4 | 5303302304 | Frame, Lh |
|
- | |||||
| 5 | 5303207200 | Seal-top Rail |
|
- | |||||
| 6 | 5303301765 | Retainer |
|
- | |||||
| 7 | 5303301254 | Support, Rh |
|
- | |||||
| 8 | 3001815 | Bracket-window (2) |
|
- | |||||
| 9 | 3007756 | Screw (2) |
|
- | |||||
| 10 | 3007759 | Nut Locking |
|
- | |||||
| 11 | 5303301255 | Support, Lh |
|
- | |||||
| 12 | 3017023 | Nut-hex (4) |
|
- | |||||
| 13 | 5303281649 | Screw (4) |
|
- | |||||
| 14 | 5303302305 | Frame, Rh |
|
- | |||||
| 15 | 5303271238 | Accordian (2) |
|
- | |||||
| 16 | 5303301777 | Rail-top Support |
|
- | |||||
| 17 | 3002803 | Screw (2) |
|
- | |||||
| 18 | 3015312 | Screw (10) |
|
- | |||||
| 19 | 3002801 | Screw (2) |
|
- | |||||
| 20 | 5314949603 | Seal |
|
- | |||||
| *92644 | 5303301888 | Kit-window Mounting |
|
- | |||||
| 6A | 5303276728 | Seal-retainer (non-illustrated) |
|
- |
