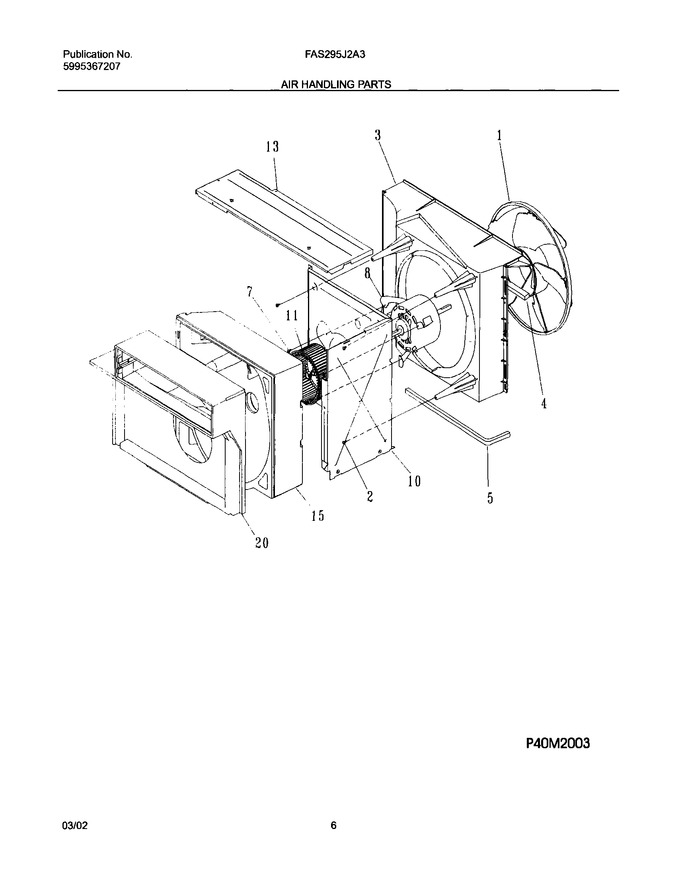

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3202975		Screw,10-16ab X 0.72 ,square Drive		Appelez-nous	-
3	309623201		Shroud,cond Fan Motor				$ 99.33
4	5303212504		Seal-sleeve/chassis,bottom		Appelez-nous	-
5	5303015311		Seal,fan Housing ,lower		Appelez-nous	-
7	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
10	309623401		Bulkhead,air System		Appelez-nous	-
11	309633001		Blower Wheel,plastic ,with Clamp		Appelez-nous	-
13	309630302		Cover,blower Wheel ,top		Appelez-nous	-
15	309630101		Housing,blower Scroll		Appelez-nous	-
20	309630201		Plate,scroll Cover		Appelez-nous	-
F1	5304422465		Fan Blade,with Clamp		Appelez-nous	-
F8	309630608		Motor,fan				$ 564.64

    View Diagram in Separate Window       Print Part List
