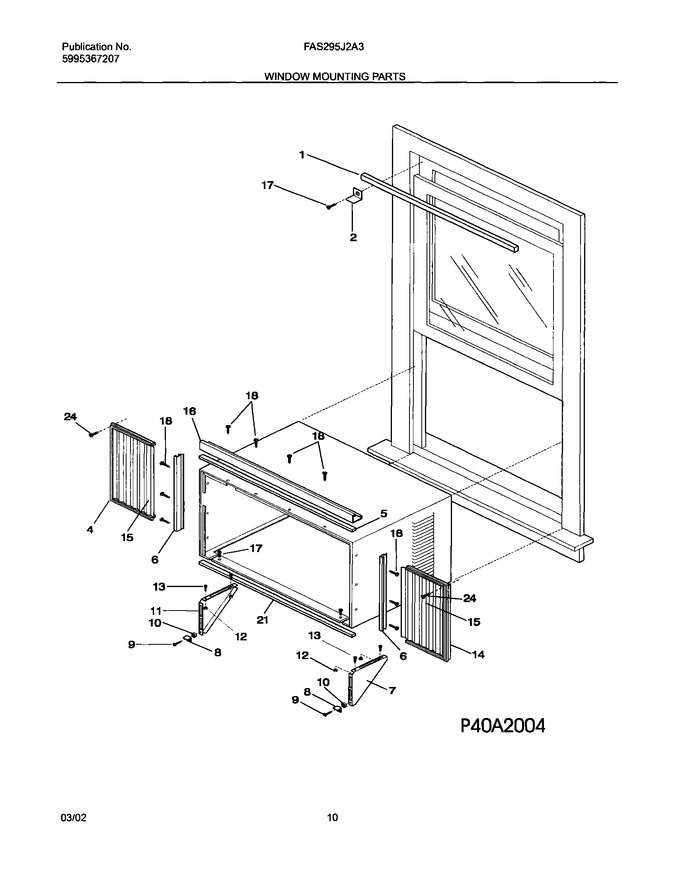

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304407729		Seal,window Stuffer		Appelez-nous	-
2	5303211056		Bracket-sash Lock		Appelez-nous	-
4	5304419163		Frame,cab Extension ,lh ,sliding		Appelez-nous	-
5	5304409250		Seal,top Rail/cab		Appelez-nous	-
6	5304414933		Retainer,accordian		Appelez-nous	-
7	5304414105		Bracket-support,rh		Appelez-nous	-
8	3001815		Bracket,sill/unit Sprt.		Appelez-nous	-
9	3007756		Screw,1/4-20 X 0.750		Appelez-nous	-
10	3007759		Nut,lock ,1/4-20 ,support Bracket		Appelez-nous	-
11	5304414106		Bracket-support,lh		Appelez-nous	-
12	3017023		Nut,hex ,10-32 ,2		Appelez-nous	-
13	5303281649		Screw,10-32 X 0.500 ,support		Appelez-nous	-
14	5304419162		Frame,cab Extension ,rh ,sliding		Appelez-nous	-
15	5304414930		Closure,accordian Type ,window Mount		Appelez-nous	-
16	5304414116		Rail,top		Appelez-nous	-
17	3002803		Screw,wood, Type 17 ,10-12 X 0.750		Appelez-nous	-
18	5308012680		Screw, Rail		Appelez-nous	-
21	5303212504		Seal-sleeve/chassis,bottom		Appelez-nous	-
24	3002801		Screw,8-18b X 0.500		Appelez-nous	-
NI	309313303		Kit-window Mounting,heavy Duty		Appelez-nous	-
NI	309313204		Kit-mounting Support		Appelez-nous	-
NI	5304409248		Kit-hardware,mounting		Appelez-nous	-
NI	5304409249		Seal-hole,shipping Screws		Appelez-nous	-
