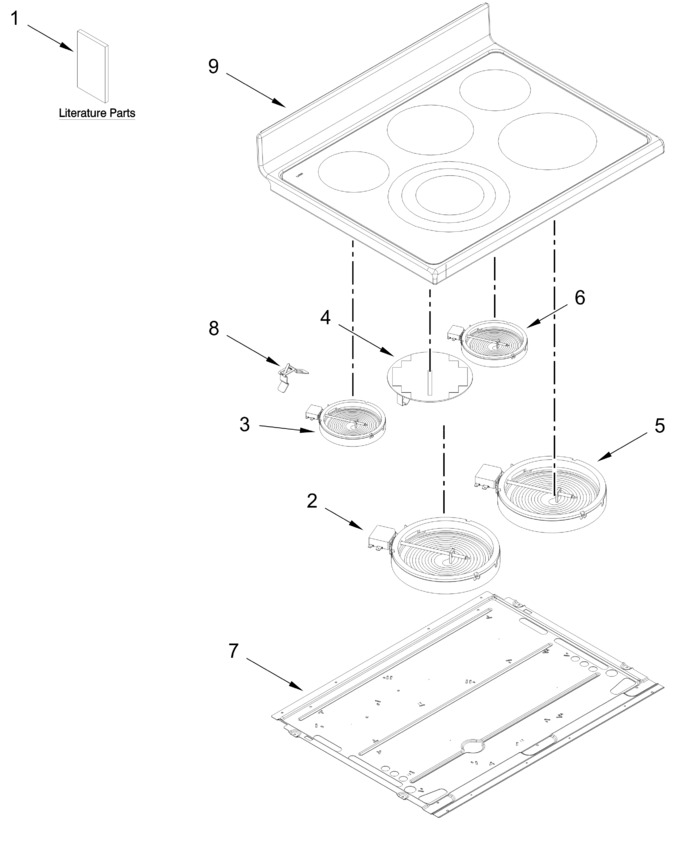

| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11101459 | Element (2700w) (Replaces: W10670279) |
|
Immediately | $ 194.15 | ||||
| 3 | WPW10270604 | Element (700w) (Replaces: W10270604) |
|
Immediately | $ 191.56 | ||||
| 4 | W11041453 | Element, Warm Zone (Replaces: W10799048) |
|
$ 113.96 | |||||
| 5 | WPW10251108 | Element (3200w) (Replaces: W10251108) |
|
Immediately | $ 201.29 | ||||
| 6 | W11171119 | Element (1200w) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 7 | WPW10260946 | Panel, Element Support (Replaces: W10260946) |
|
$ 115.80 | |||||
| 8 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 9 | W10780927 | Cooktop (stainless) (Replaces: W10687991) |
|
$ 610.79 | |||||
| W11815316 | Harness, Main (Replaces: W11771087) |
|
- | ||||||
| 8019P02660 | Clip, Wire-wrap Nylon |
|
- | ||||||
| 7401P15760 | Block, Bare Wire Adapter |
|
- | ||||||
| 7103P02760 | Nut |
|
- | ||||||
| ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12 | (center Rear) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11226497 | Cord, Power (Replaces: W10624592) |
|
Immediately | $ 65.69 | |||||
| 8019P01360 | Clip, Wire Lock |
|
- | ||||||
| W11785257 | Tech Sheet |
|
- | ||||||
| 7101P02760 | Screw, Ground |
|
- | ||||||
| W11809000 | Harness, Infinite Switch (left) (Replaces: W11768200) |
|
- | ||||||
| W11427490 | Owner's Manual |
|
- | ||||||
| W11430269 | Quick Start Guide |
|
- | ||||||
| W11172428 | Harness, Eol (dofsr) |
|
- | ||||||
| W11172427 | Harness, Infinite Switch (right) |
|
$ 165.50 | ||||||
| W11171874 | Harness, Cooktop |
|
$ 201.57 | ||||||
| W11172531 | Harness, Sensor & Locks |
|
$ 102.17 |
