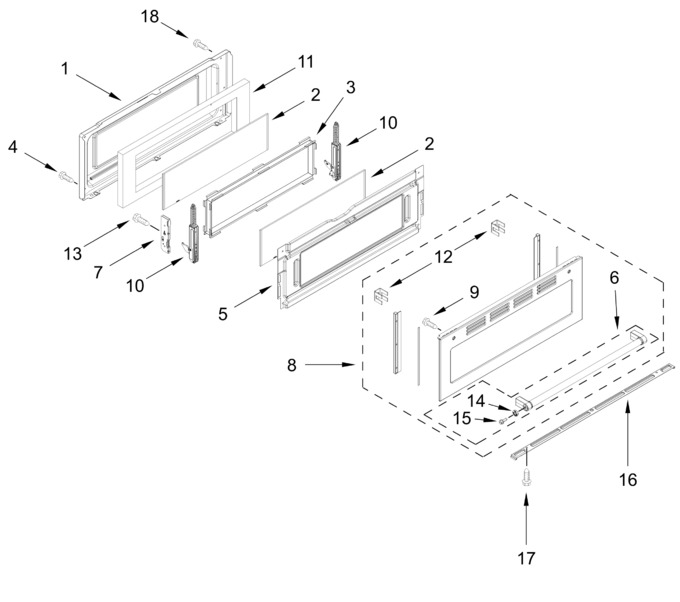

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Chassis Parts
Control Panel Parts
Cooktop Parts
Internal Oven Parts
Lower Door Parts
Optional Parts (not Included)
Upper Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11103615 | Lining, Door (Replaces: W11051041) |
|
$ 260.61 | |||||
| 2 | W11132120 | Glass, Inner (Replaces: W11099272) |
|
$ 153.71 | |||||
| 3 | WPW10272708 | Frame, Glass (Replaces: W10272708) |
|
$ 147.37 | |||||
| 4 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 6.47 | ||||
| 5 | W10485723 | Retainer, Insulation |
|
$ 216.36 | |||||
| 6 | W11305107 | Handle Assembly (black) |
|
$ 166.80 | |||||
| 7 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 8 | W11132193 | Door Assembly (stainless) (Replaces: W10888651) |
|
Immediately | $ 485.51 | ||||
| 9 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.09 | ||||
| 10 | WPW10485733 | Hinge, Door (left) (Replaces: W10485733) |
|
Immediately | $ 53.63 | ||||
| 11 | WPW10321271 | Insulation, Door (Replaces: W10321271) |
|
$ 85.01 | |||||
| 12 | W10575917 | Spacer, Vent Trim |
|
$ 11.38 | |||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 14 | W10846207 | Handle Medallion (red) (Replaces: W10551026) |
|
Immediately | $ 19.84 | ||||
| 15 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 7.19 | ||||
| 16 | W11448964 | Bracket, Door Trim |
|
$ 54.09 | |||||
| 17 | W11690596 | Screw With Washer (Replaces: W10284411) |
|
$ 17.40 | |||||
| 18 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 6.98 | ||||
| WPW10485732 | Hinge, Door (right) (Replaces: W10485732) |
|
Immediately | $ 50.18 |
