Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 54423-1 Orifice Appelez-nous -
2 53837-1 Shield Appelez-nous -
3 52077-10 Seal Appelez-nous -
4 400015-1 Screw Appelez-nous -
4 62690-40 Cover, Coil Appelez-nous -
5 59920-1 Stud, Mounting Coil Cover Appelez-nous -
6 52077-17 Seal Appelez-nous -
7 52077-19 Seal,upper Coil Cover To Liner Appelez-nous -
8 52824-6 Coil Seal Appelez-nous -
9 29814-2 Receptacle, Light Appelez-nous -
10 W11679940 Light Bulb (25w,125v)   (Replaces: 2386-1) In-Stock Immediately $ 10.17

11 56432-2 Switch Appelez-nous -
12 65654-2 Shield, Light Appelez-nous -
13 53687-2 Support Appelez-nous -
14 54424-2 Support Appelez-nous -
15 56488-4 Motor Appelez-nous -
16 52120-1 Blade, Fan Frzr. Appelez-nous -
17 64856-2 Bracket, Fan Motor Appelez-nous -
18 62689-1 Fan Grid Appelez-nous -
18 WP67006908 Screw   (Replaces: 400022-1) In-Stock Immediately $ 7.16

19 65224-10 Cover, Coil Appelez-nous -
20 26527-5 Drain Tube Appelez-nous -
21 52526-1 Grommet Appelez-nous -
22 53727-1 Retainer, Air Tunnel Appelez-nous -
23 53727-1 Retainer, Air Tunnel Appelez-nous -
24 65651-7 Shelf, Frz. Appelez-nous -
25 65651-8 Shelf, Frz. Appelez-nous -
26 68139-10 Glass Shelf Appelez-nous -
26 65598-42 Glass Shelf Appelez-nous -
27 65561-416 Trim, Shelf Appelez-nous -
28 65629-1 Im Door Appelez-nous -
29 65628-8 Insert Appelez-nous -
30 60313-1 Cup, Shelf Appelez-nous -
30 65630-1 Im Encl Latch Appelez-nous -
31 65652-1 Im Duct Appelez-nous -
32 66512-8 Drawer, Frz. Appelez-nous -
33 68124-13 Insert Appelez-nous -
34 53821-1 Nut Appelez-nous -
35 59090-1 Bushing Appelez-nous -
36 ES18809 Switch   (Replaces: 56432-1) Special Order $ 11.30

36 65623-2 Divider Appelez-nous -
37 66316-2 Trim Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

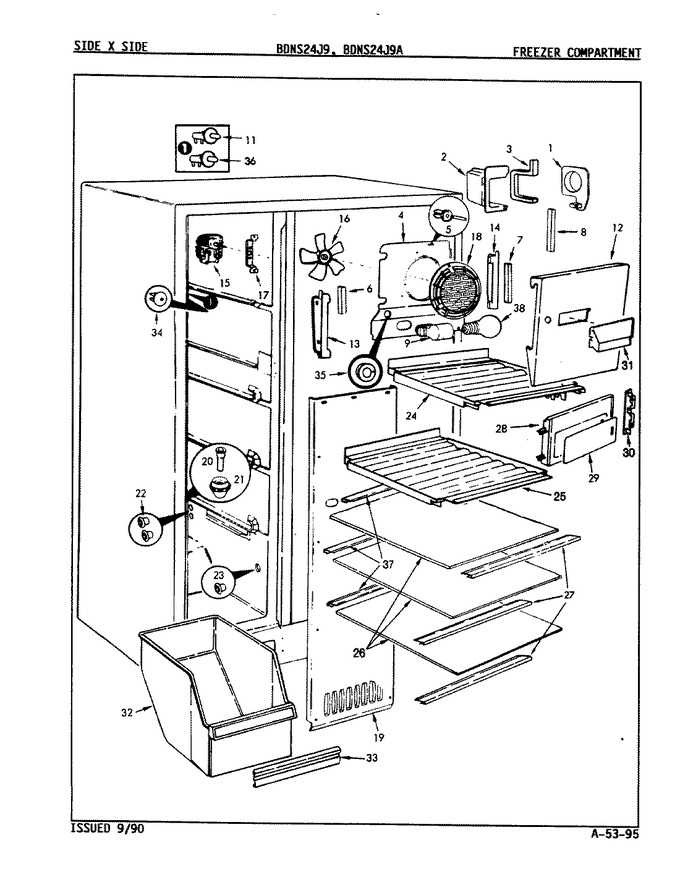

Diagram for BDNS24J9A (BOM: 8N68A)
