01 - Freezer Compartment

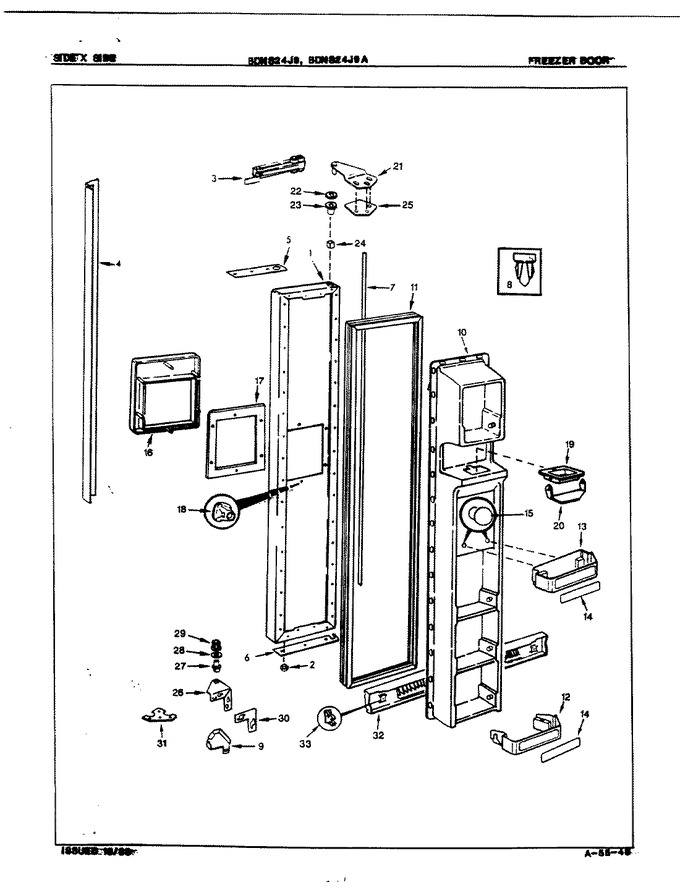

02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Unit Compartment & System
06 - Water & Ice Dispenser
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 66685-2-AM | Panel, Frz. Door (alm) |
|
- | |||||
| 2 | 495034-900 | Plug Button, Door |
|
- | |||||
| 3 | 52614-1 | Bracket, Closer |
|
- | |||||
| 3 | 54485-1 | Closer, Door |
|
- | |||||
| 3 | 66723-1 | Clip |
|
- | |||||
| 4 | 66934-5 | Door Handle |
|
- | |||||
| 4 | 65275-4 | Screw |
|
- | |||||
| 4 | 66723-1 | Clip |
|
- | |||||
| 5 | 66935-1 | Perimeter Trim |
|
- | |||||
| 6 | 66935-5 | Perimeter Trim |
|
- | |||||
| 7 | 66935-4 | Perimeter Trim |
|
- | |||||
| 7 | 400015-12 | Screw |
|
- | |||||
| 8 | 29458-2 | Stud |
|
- | |||||
| 9 | 65131-1 | Wire Cover |
|
- | |||||
| 10 | 9986-12 | Screw,door Liner |
|
- | |||||
| 10 | 65951-7 | Liner, Frz. Door |
|
- | |||||
| 11 | 53712-1 | Gasket |
|
- | |||||
| 12 | 65701-10 | Front, Pick-off |
|
- | |||||
| 13 | 65709-10 | Shelf, Pick-off |
|
- | |||||
| 14 | 68121-7 | Insert |
|
- | |||||
| 15 | 420028-1 | Washer |
|
- | |||||
| 15 | WP90767 | Screw (Replaces: 400014-1) |
|
Immediately | $ 7.04 | ||||
| 15 | 65660-2 | Stud, Pick-off Shelf |
|
- | |||||
| 16 | 60482-52 | Escutcheon |
|
- | |||||
| 17 | 63057-1 | Seal, Escutcheon |
|
- | |||||
| 18 | 65211-2 | Retainer, Escutcheon |
|
- | |||||
| 19 | 66775-6 | Collar |
|
- | |||||
| 20 | 66875-1 | Cover, Upper Hinge (chrome) |
|
- | |||||
| 20 | 63075-1 | Door, Ice Chute |
|
- | |||||
| 21 | WP3-24838-048 | Screw (Replaces: 9986-87) |
|
$ 7.00 | |||||
| 21 | 53709-16 | Upper Hinge,(chrome) |
|
- | |||||
| 22 | 52185-2 | Washer |
|
- | |||||
| 23 | 66036-2 | Bushing, Upper Hinge |
|
- | |||||
| 24 | 55990-1 | Seal Sleeve |
|
- | |||||
| 25 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 26 | 60630-4 | Hinge |
|
- | |||||
| 26 | 403062-5 | Screw |
|
- | |||||
| 26 | 400062-1 | Screw |
|
- | |||||
| 27 | 65418-1 | Pin |
|
- | |||||
| 28 | 54233-2 | Washer |
|
- | |||||
| 29 | 66037-1 | Hinge Bushing |
|
- | |||||
| 30 | 60626-1 | Shim, Lower Hinge |
|
- | |||||
| 31 | 65964-1 | Tapping Plate, Lower Hinge |
|
- | |||||
| 32 | 56478-27 | Kickplate |
|
- | |||||
| 33 | 52854-3 | Clip, Kickplate |
|
- |
